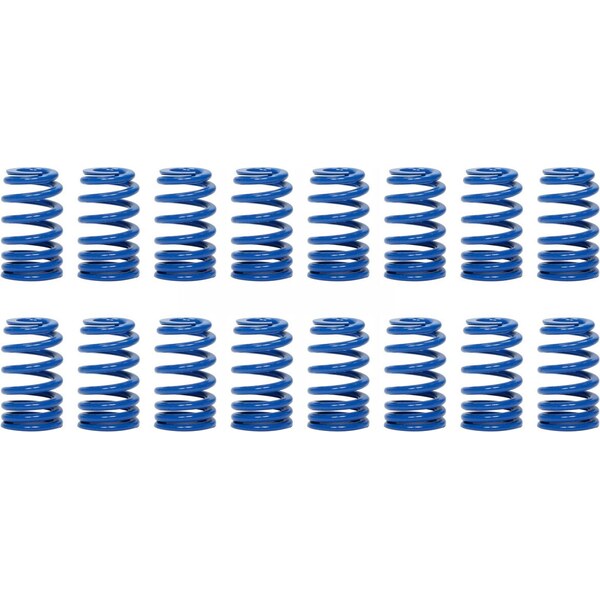

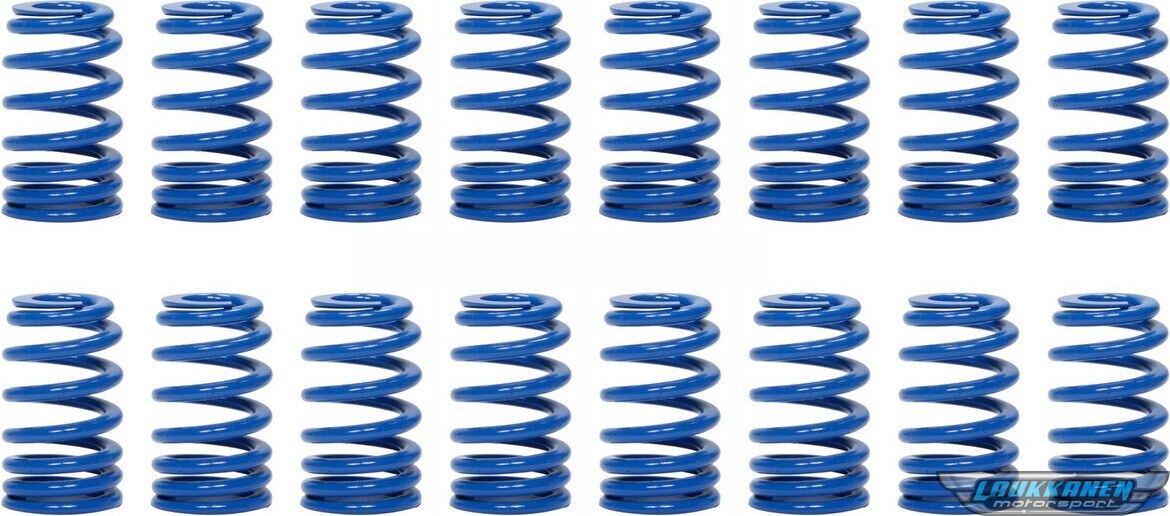

PAC Racing - PAC-1280X - 1.282 Valve Springs - Ovate Beehive (16)

Product Images may differ from the actual product. Image may be a representation of this item.

The price includes any freight from the supplier to the Store

Popis produktu

Valve Spring - RPM Series - Ovate Beehive Spring - 386 lb/in Spring Rate - 1.181 in Coil Bind - 1.077 in / 1.282 in OD - Set of 16

Additional information
Outer Diameter: 1.077 in / 1.282 in
Inner Diameter (Outer): 0.655 in / 0.860 in
Inner Diameter (Inner): N/A
Installed Height (Valve Closed): 1.800 in
Seat Pressure @ 1.800 in: 92 lbs
Open Pressure @ 1.300 in: 285 lbs
Spring Rate: 386 lb/in
Max Valve Lift: 0.500 in
Coil Bind Height: 1.181 in

Recommended components:
Retainers: N/A
Spring Seats: N/A

Application notes:
GM 604 crate motor “Beehive” valve spring. Meets class specifications with improved RPM capability and endurance compared to standard springs.

racingsprings.com

Vendor Part Number: PAC-1280X

Pac Racing Catalog -24
Pac Racing Catalog -15

Always verify specifications with the manufacturer and engine builder before final assembly.

Přibližná velikost zabaleného produktu nebo prodejního obalu je 102 x 89 x 382 mm.

Spring Type
Beehive

Hmotnost
1,5 kg(Produkt může mít lehký prodejní obal.)

Dostupnost
Přibližně 7 - 15 den/dní od objednávky, najskôr 8.8.2026.
