PAC Racing - PAC-1218X - 1.290 Valve Springs - Ovate Beehive (16)

Product Images may differ from the actual product. Image may be a representation of this item.

The price includes any freight from the supplier to the Store

Popis produktu

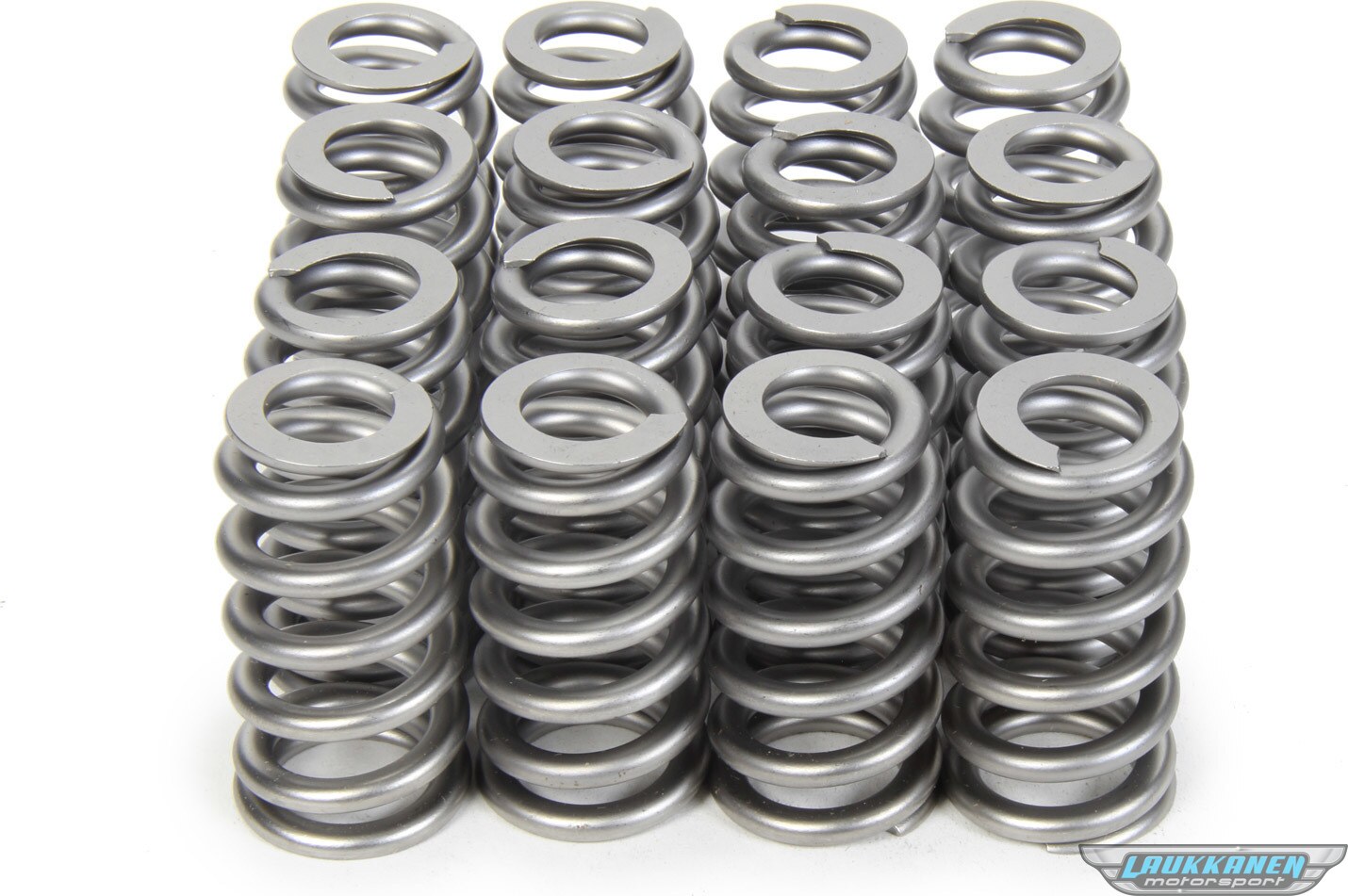

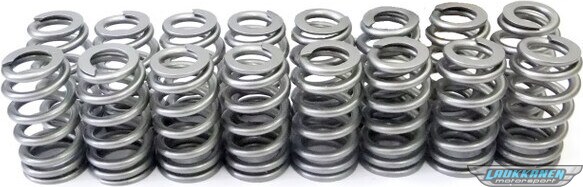

Valve Spring - RPM Series - Ovate Beehive Spring - 313 lb/in Spring Rate - 1.140 in Coil Bind - 0.885 in / 1.290 in OD - Set of 16

Additional information
Outer Diameter (Bottom): 1.290 in
Inner Diameter (Bottom): 1.055 in
Outer Diameter (Top): 0.885 in
Inner Diameter (Top): 0.650 in
Installed Height (Valve Closed): 1.800 in
Seat Pressure @ 1.800 in: 140 lbs
Open Pressure @ 1.200 in: 328 lbs
Spring Rate: 313 lb/in
Coil Bind Height: 1.115 in
Max Valve Lift: 0.600 in

Recommended components:
Retainers (PAC 300 Series): R310, R311, R363
Retainers (PAC 500 Series): R510, R511
Spring Seats: S111

Application notes:
LS drop-in spring with higher load than 1218 for performance use.

racingsprings.com

Vendor Part Number: PAC-1218X

Pac Racing Catalog -24
Pac Racing Catalog -15

Always verify specifications with the manufacturer and engine builder before final assembly.

Přibližná velikost zabaleného produktu nebo prodejního obalu je 103 x 92 x 388 mm.

Engine
Universal

Spring Type
Beehive

Hmotnost
1,5 kg(Produkt může mít lehký prodejní obal.)
