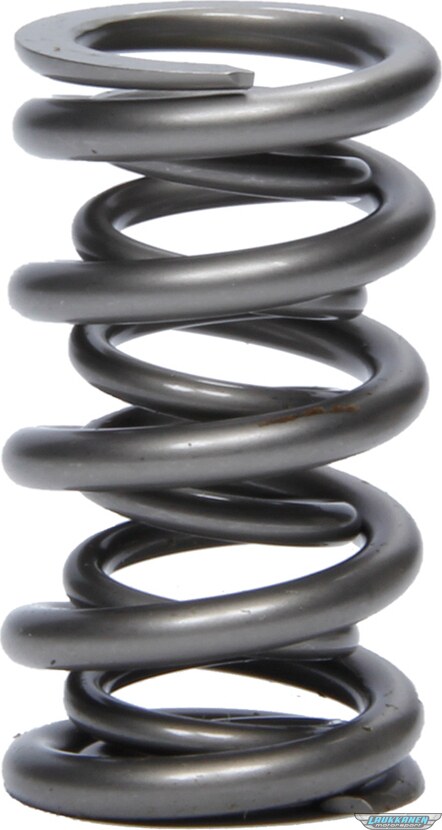

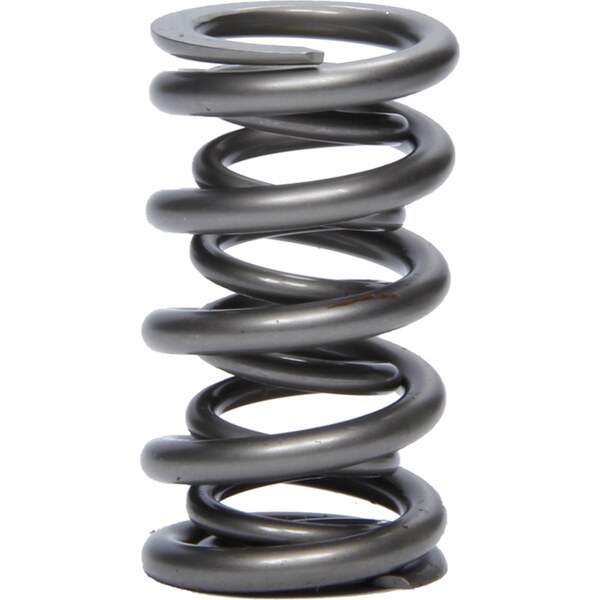

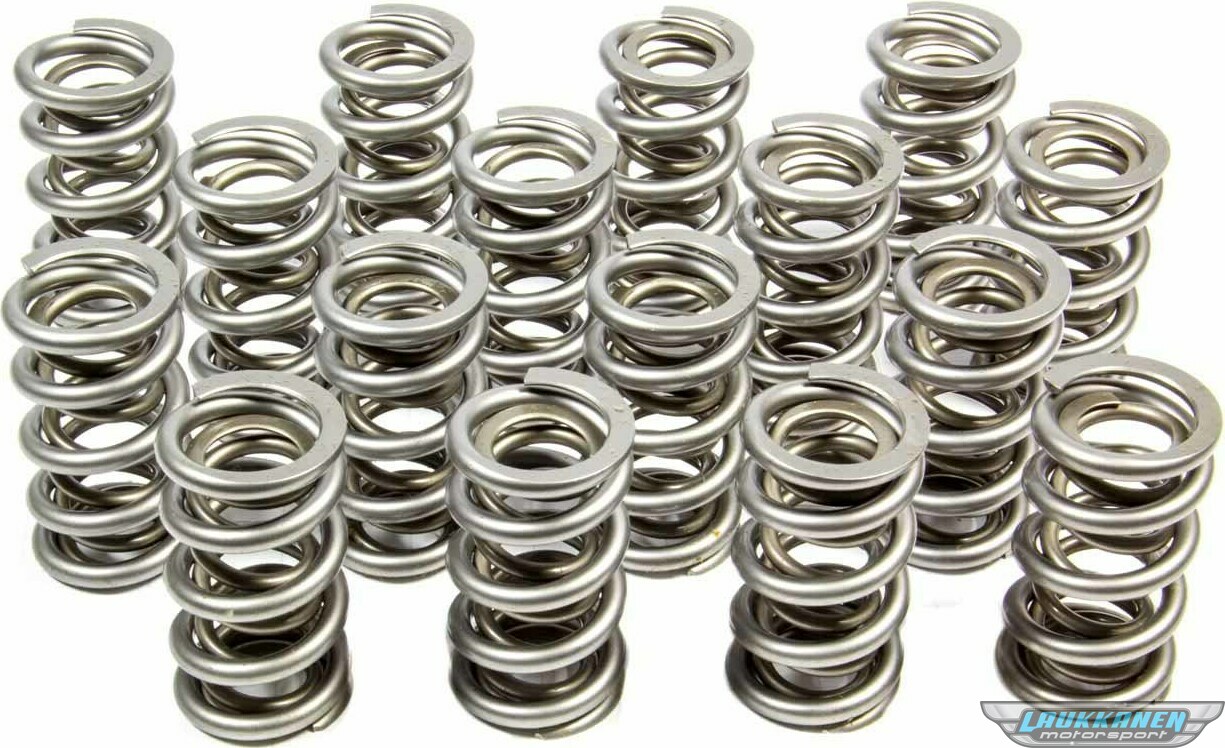

PAC Racing - PAC-1238X - 1.274 Dual Valve Spring GM LS (1)

Product Images may differ from the actual product. Image may be a representation of this item.

The price includes any freight from the supplier to the Store

Popis produktu

Valve Spring - RPM Series - Dual Spring - 600 lb/in Spring Rate - 0.985 in Coil Bind - 1.274 in OD - GM LS-Series - Each

Additional information
Outer Diameter: 1.274 in
Inner Diameter (Outer): 0.900 in
Inner Diameter (Inner): 0.630 in
Installed Height (Valve Closed): 1.800 in
Seat Pressure @ 1.800 in: 250 lbs
Open Pressure @ 1.050 in: 700 lbs
Spring Rate: 600 lb/in
Max Valve Lift: 0.750 in
Coil Bind Height: 0.985 in

Recommended components:
Retainers (PAC 400 Series): R432
Retainers (PAC 500 Series): R532
Retainers (PAC 600 Series): R632
Spring Seats: S128, S138

Application notes:
LS spring for drag racing and street/strip use. Very high rate and high frequency spring.

racingsprings.com

Vendor Part Number: PAC-1238X

Pac Racing Catalog -24
Pac Racing Catalog -15

Always verify specifications with the manufacturer and engine builder before final assembly.

Přibližná velikost zabaleného produktu nebo prodejního obalu je 97 x 53 x 169 mm.

Engine
Chevy LS

Spring Type
Dual

Hmotnost
0,1 kg
(spolu s prodejním obalem 0,2 kg)
