PAC Racing - PAC-1258 - 1.645 Triple Valve Spring (1)

Product Images may differ from the actual product. Image may be a representation of this item.

The price includes any freight from the supplier to the Store

Popis produktu

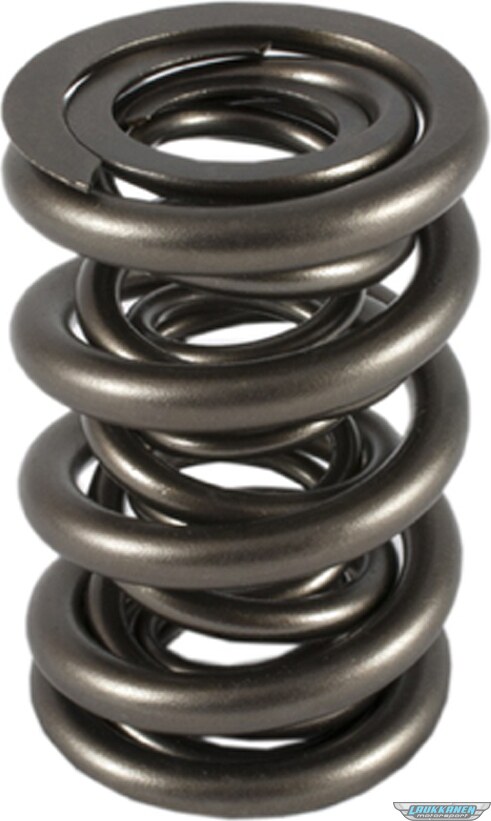

Valve Spring - 1200 Series Drag Race - Triple Spring - 688 lb/in Spring Rate - 1.130 in Coil Bind - 1.645 in OD - Each

Additional information
Outer Diameter: 1.645 in
Outer Inner Diameter: 1.195 in
Middle Inner Diameter: 0.871 in
Inner Diameter: 0.635 in
Installed Height (Valve Closed): 2.150 in
Seat Pressure @ 2.150 in: 350 lbs
Open Pressure @ 1.200 in: 1004 lbs
Spring Rate: 688 lb/in
Max Valve Lift: 0.950 in
Coil Bind Height: 1.130 in

Recommended components:
Retainers (PAC 400 Series): R401, R402
Retainers (PAC 500 Series): R501, R502
Retainers (PAC 600 Series): R601, R602
Spring Seats: S109

Application notes:
Bracket racing applications.

racingsprings.com

Vendor Part Number: PAC-1258

Pac Racing Catalog -24
Pac Racing Catalog -15

Always verify specifications with the manufacturer and engine builder before final assembly.

Přibližná velikost zabaleného produktu nebo prodejního obalu je 102 x 51 x 153 mm.

Engine
Universal

Spring Type
Triple

Hmotnost
0,2 kg(Produkt může mít lehký prodejní obal.)
