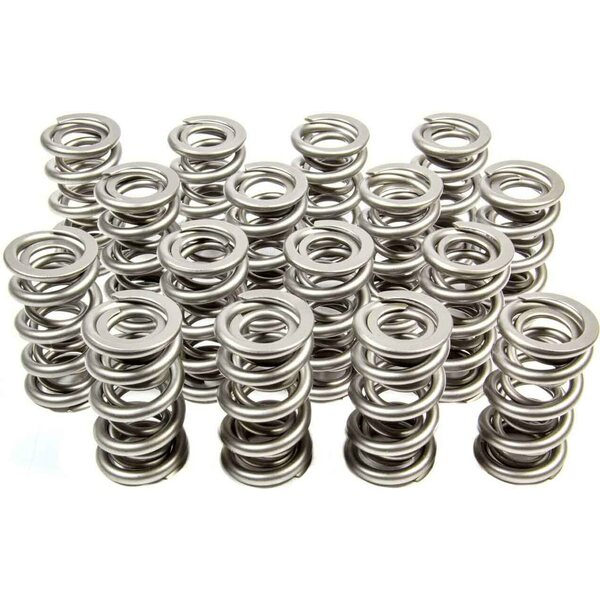

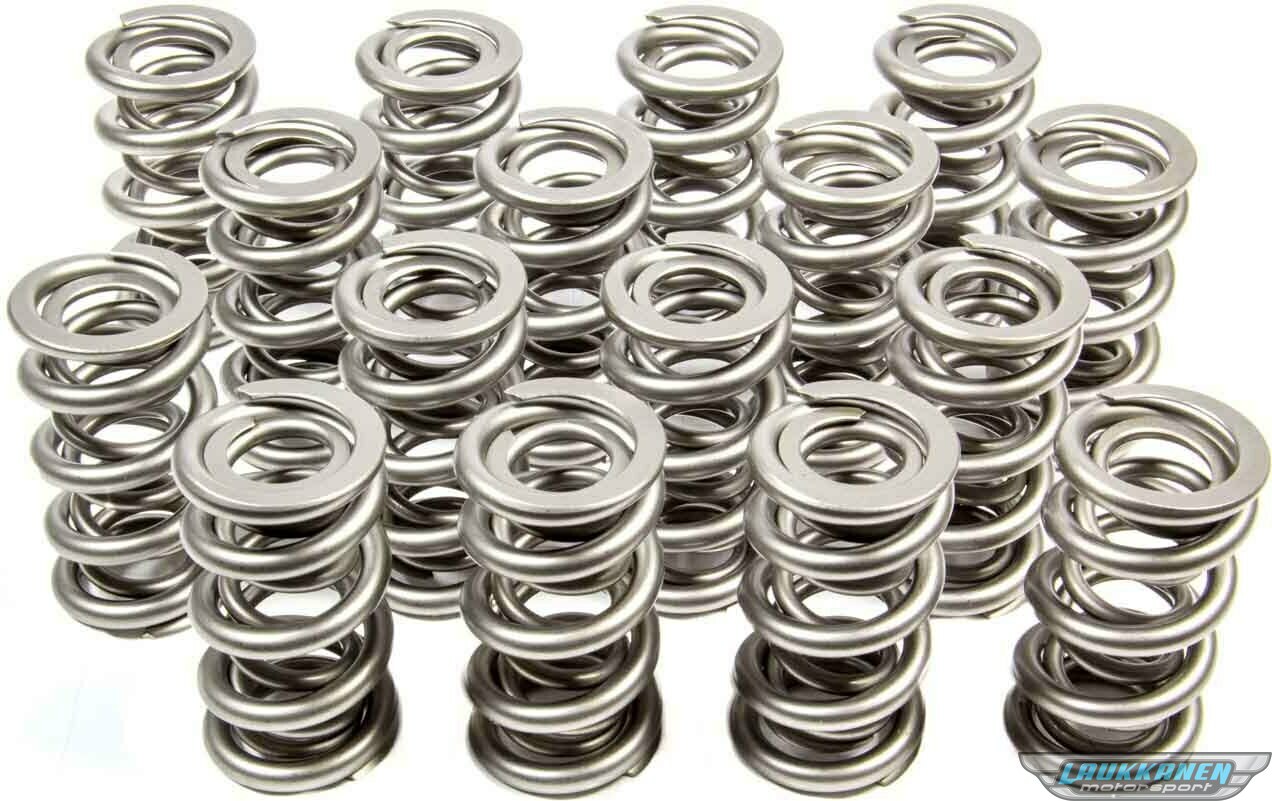

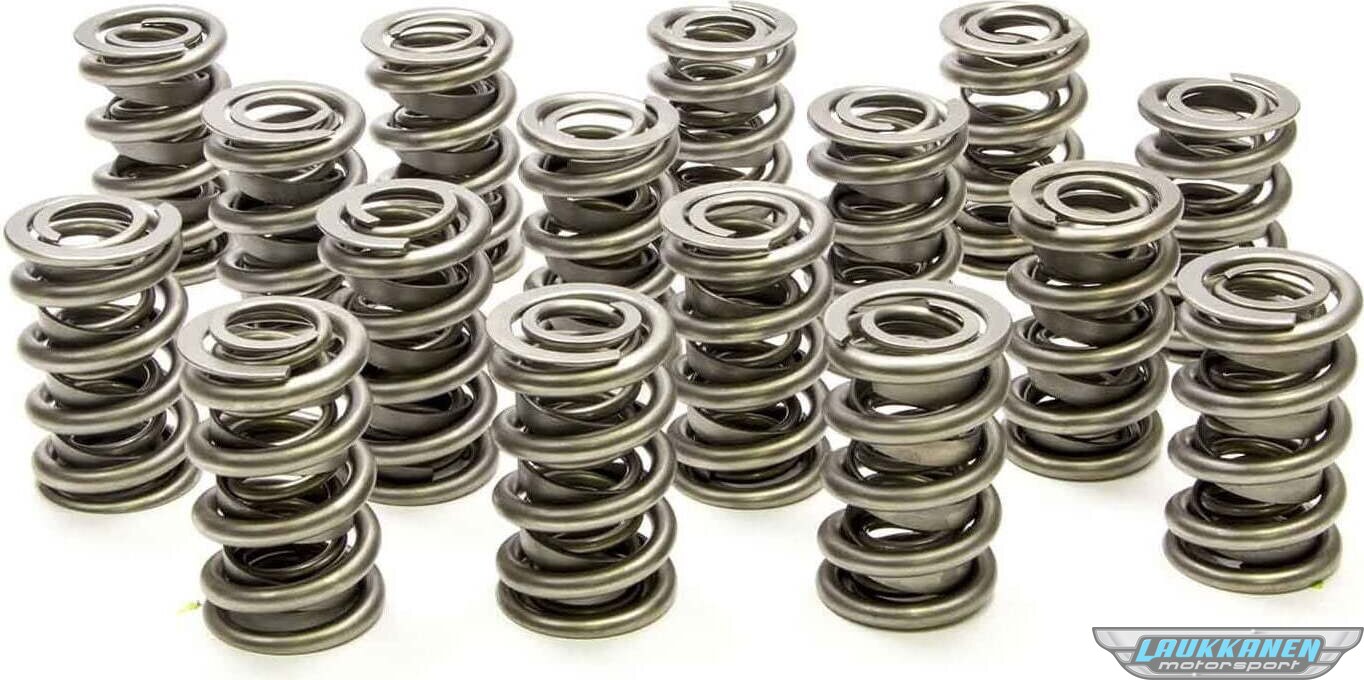

PAC Racing - PAC-1331 - 1.514 Dual Valve Springs (16)

Product Images may differ from the actual product. Image may be a representation of this item.

The price includes any freight from the supplier to the Store

Popis produktu

Valve Spring - 1300 Series Drag Race - Dual Spring - 863 lb/in Spring Rate - 1.160 in Coil Bind - 1.514 in OD - Set of 16

Additional information
Outer Diameter (OD): 1.514 in
Spring ID (Outer): 1.050 in
Inner Diameter (ID): 0.726 in
Installed Height (Valve Closed): 2.200 in
Seat Pressure @ 2.200 in: 425 lbs
Open Pressure @ 1.200 in: 1288 lbs
Spring Rate: 863 lb/in
Coil Bind Height: 1.160 in
Max Valve Lift: 1.000 in

Recommended components:
Retainers (PAC 500 Series): R508, R509, R544
Retainers (PAC 600 Series): R608, R609, R644
Spring Seats: S110, S126, S134, S132

Application notes:
High-rate spring for aggressive valvetrains and high RPM.

racingsprings.com

Vendor Part Number: PAC-1331

Pac Racing Catalog -24
Pac Racing Catalog -15

Always verify specifications with the manufacturer and engine builder before final assembly.

Přibližná velikost zabaleného produktu nebo prodejního obalu je 102 x 92 x 387 mm.

Engine
Universal

Spring Type
Dual

Hmotnost
2,6 kg(Produkt může mít lehký prodejní obal.)

Dostupnost
The product is temporarily out of stock.
