PAC Racing - PAC-1940 - Valve Spring - HR Series (1)

Product Images may differ from the actual product. Image may be a representation of this item.

The price includes any freight from the supplier to the Store

Popis produktu

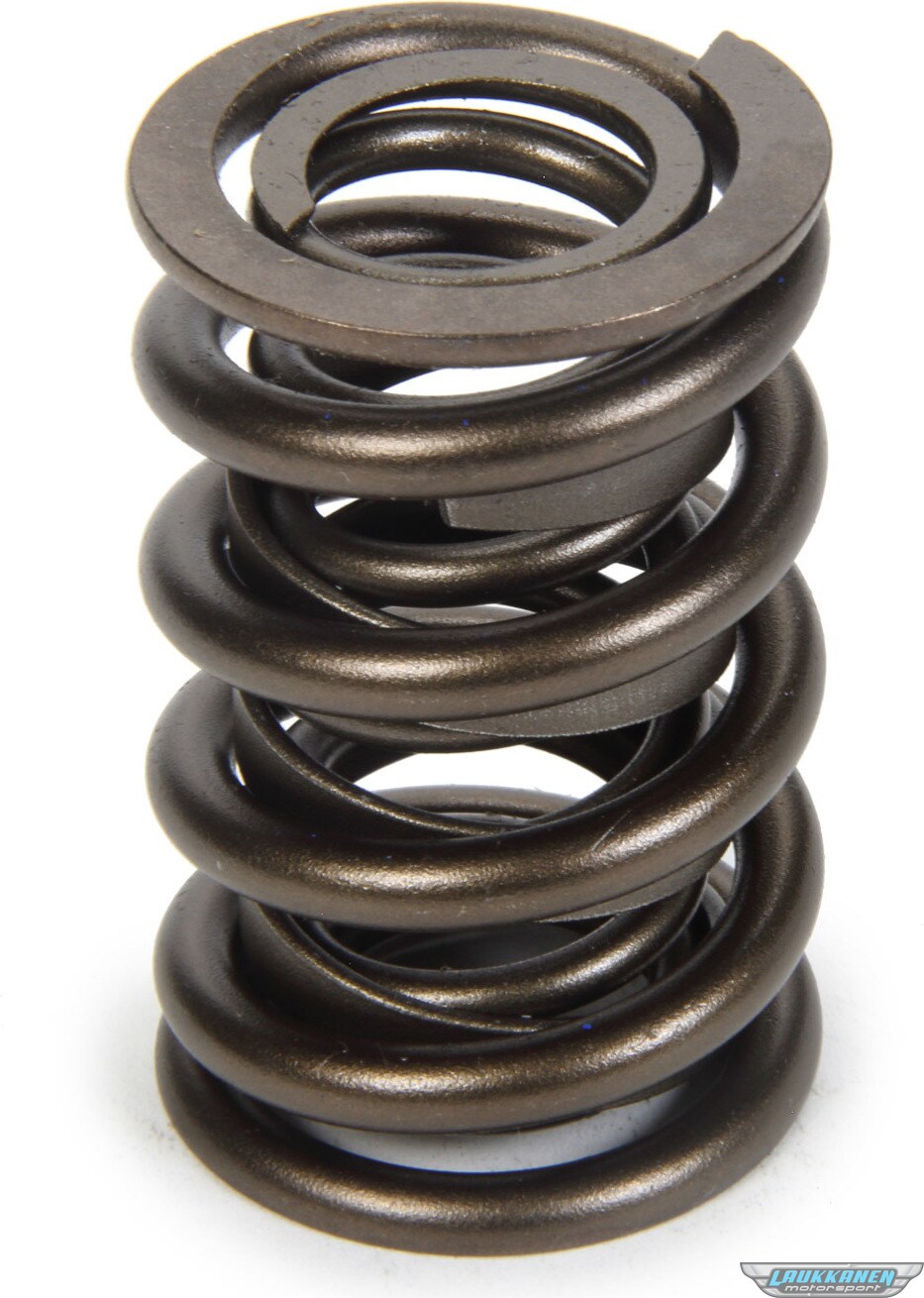

Valve Spring - Hot Rod Series - Dual Spring / Damper - 469 lb/in Spring Rate - 1.120 in Coil Bind - 1.555 in OD - Each

Additional information
Outer Diameter: 1.555 in
Inner Diameter (Outer): 1.140 in
Damper: Yes
Inner Diameter (Inner): 0.747 in
Installed Height (Valve Closed): 1.950 in
Seat Pressure @ 1.950 in: 194 lbs
Open Pressure @ 1.300 in: 500 lbs
Spring Rate: 469 lb/in
Max Valve Lift: 0.700 in
Coil Bind Height: 1.120 in

Recommended components:
Retainers (PAC 300 Series): R387
Spring Seats: S117, S118

Application notes:
Solid flat tappet and hydraulic roller camshaft applications.

racingsprings.com

Vendor Part Number: PAC-1940

Pac Racing Catalog -24
Pac Racing Catalog -15

Always verify specifications with the manufacturer and engine builder before final assembly.

Přibližná velikost zabaleného produktu nebo prodejního obalu je 63 x 58 x 92 mm.

Engine
Universal

Spring Type
Dual w/Damper

Hmotnost
0,2 kg(Produkt může mít lehký prodejní obal.)
