PAC Racing - PAC-1237X - 1.274 Dual Valve Springs GM LS (16)

Product Images may differ from the actual product. Image may be a representation of this item.

The price includes any freight from the supplier to the Store

Product description

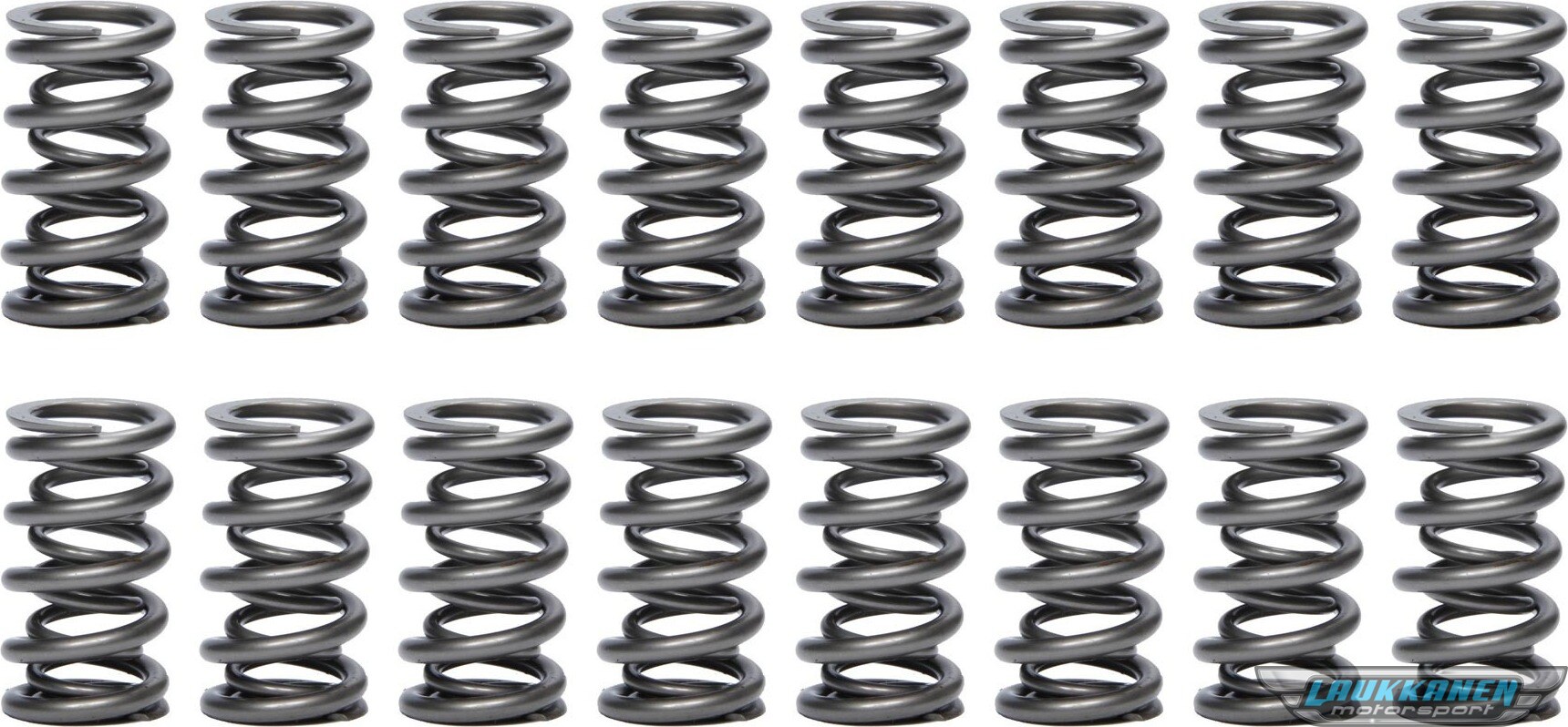

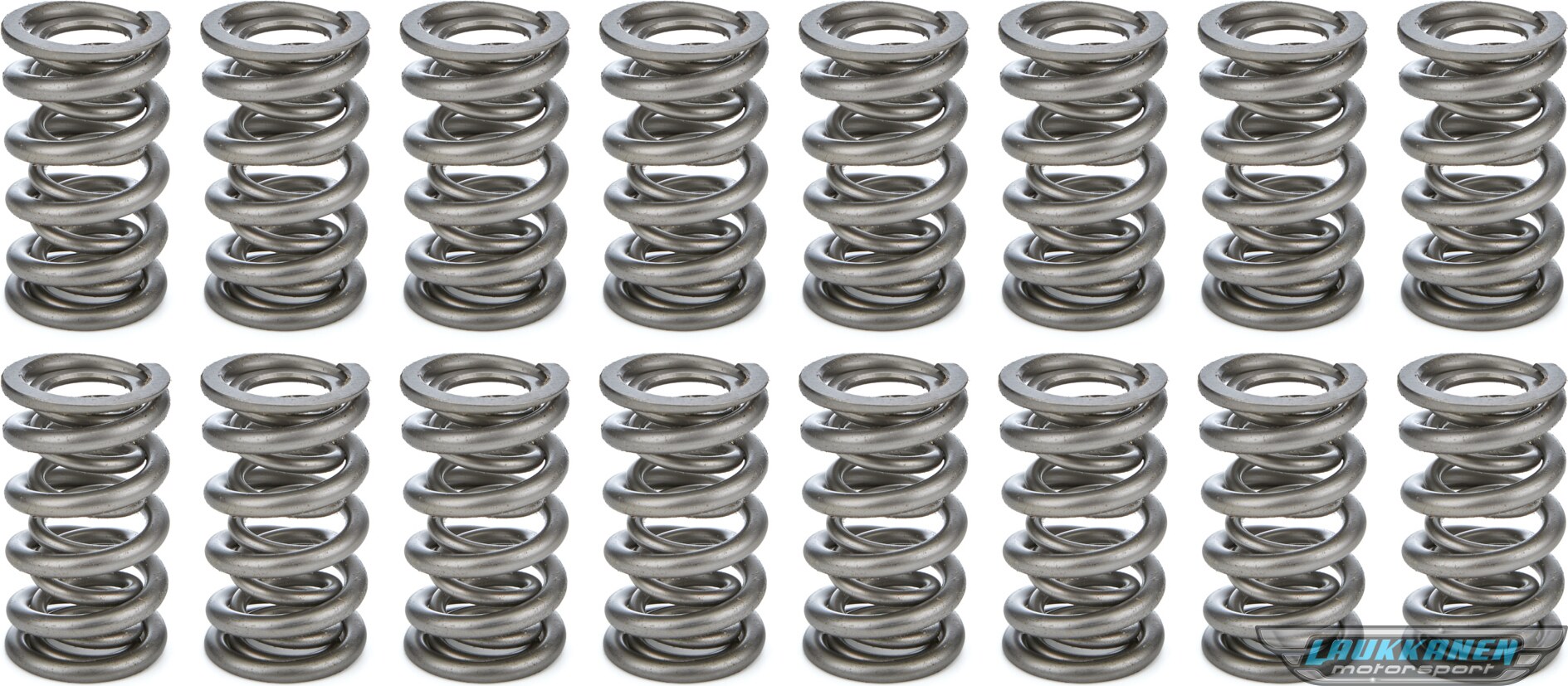

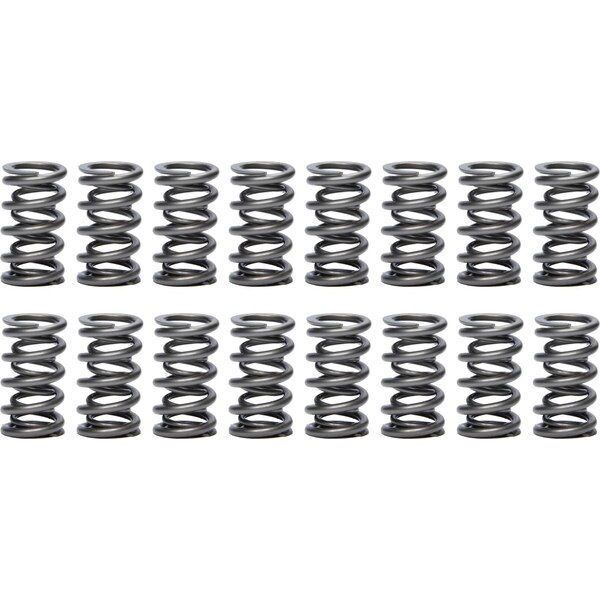

Valve Spring - RPM Series - Dual Spring - 550 lb/in Spring Rate - 1.045 in Coil Bind - 1.274 in OD - GM LS-Series - Set of 16

Additional information
Outer Diameter: 1.274 in
Inner Diameter (Outer): 0.900 in
Inner Diameter (Inner): 0.630 in
Installed Height (Valve Closed): 1.800 in
Seat Pressure @ 1.800 in: 200 lbs
Open Pressure @ 1.100 in: 585 lbs
Spring Rate: 550 lb/in
Max Valve Lift: 0.700 in
Coil Bind Height: 1.045 in

Recommended components:
Retainers (PAC 400 Series): R432
Retainers (PAC 500 Series): R532
Retainers (PAC 600 Series): R632
Spring Seats: S128, S138

Application notes:
LS spring for drag racing and street/strip use. High rate and high frequency design.

racingsprings.com

Vendor Part Number: PAC-1237X

Pac Racing Catalog -24
Pac Racing Catalog -15

Always verify specifications with the manufacturer and engine builder before final assembly.

The approximate size of the packed product or the sales package is 102 x 89 x 384 mm.

Engine
Chevy LS

Spring Type
Dual

Weight
1,8 kg(The product may have a light retail packaging.)
