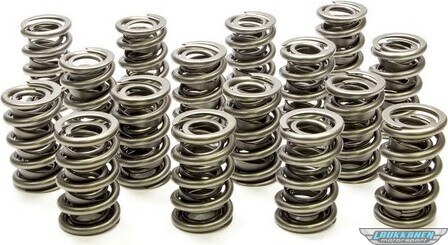

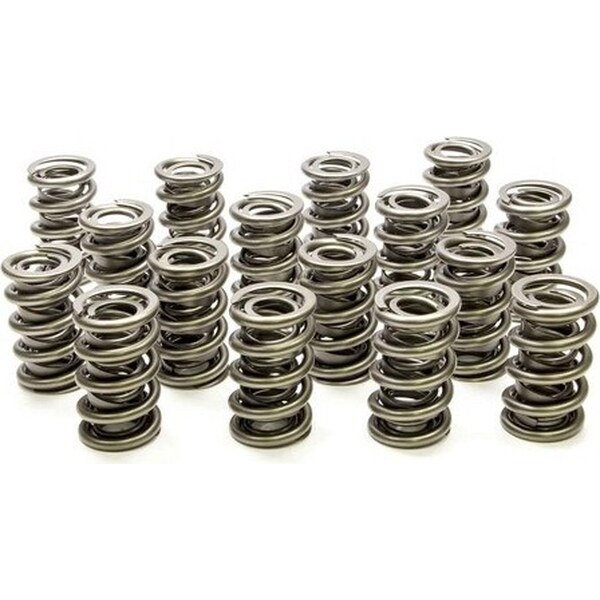

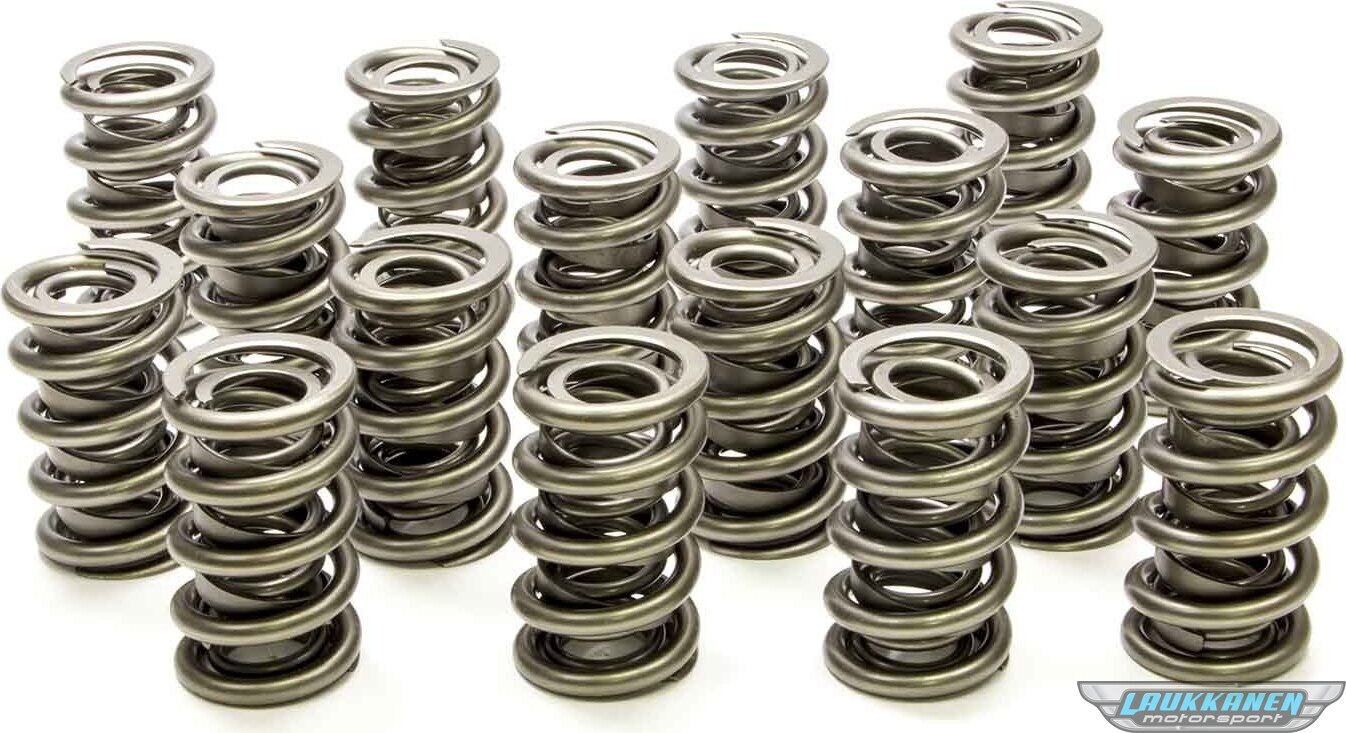

PAC Racing - PAC-1395 - 1.574 Dual Valve Springs (16)
Tootepildid võivad erineda tegelikust tootest. Pilt võib olla illustratiivne kujutis.
Hind sisaldab võimalikku transporditasu tarnijalt kauplusesse
Toote kirjeldusValve Spring - 1300 Series Circle Track - Dual Spring / Damper - 550 lb/in Spring Rate - 1.150 in Coil Bind - 1.574 in OD - Set of 16
Lisainformatsioon
Outer Diameter: 1.574 in
Inner Diameter (Outer): 1.150 in
Damper: Yes
Inner Diameter: 0.744 in
Installed Height (Valve Closed): 2.000 in
Seat Pressure @ 2.000 in: 265 lbs
Open Pressure @ 1.200 in: 765 lbs
Spring Rate: 550 lb/in
Max Valve Lift: 0.800 in
Coil Bind Height: 1.150 in
Recommended components:
Retainers (PAC 500 Series): R514, R519
Retainers (PAC 600 Series): R614, R619
Spring Seats: S117, S118
Application notes:
High lift roller applications.
racingsprings.com
Tarnija osa number: PAC-1395
Pac Racing Catalog -24
Pac Racing Catalog -15
Always verify specifications with the manufacturer and engine builder before final assembly.
