Dana - Spicer - 2-2-1379 - Driveshaft Flange Yoke

Dana - Spicer - 2-2-1379 - Driveshaft Flange Yoke


Pris
98,59 € inkl. mva. 25.5% (78.56 €, mva. 0) + Veveranse kostnader


Antall
stk


I lager
Hentested Vantaa1 stk umiddelbart
Leverandørens lager2 stk
Tilgjengelig i nettbutikken3 stk

Produkt kode
DAN2-2-1379
Product Images may differ from the actual product. Image may be a representation of this item.
The price includes any freight from the supplier to the Store
Produkt beskrivelse

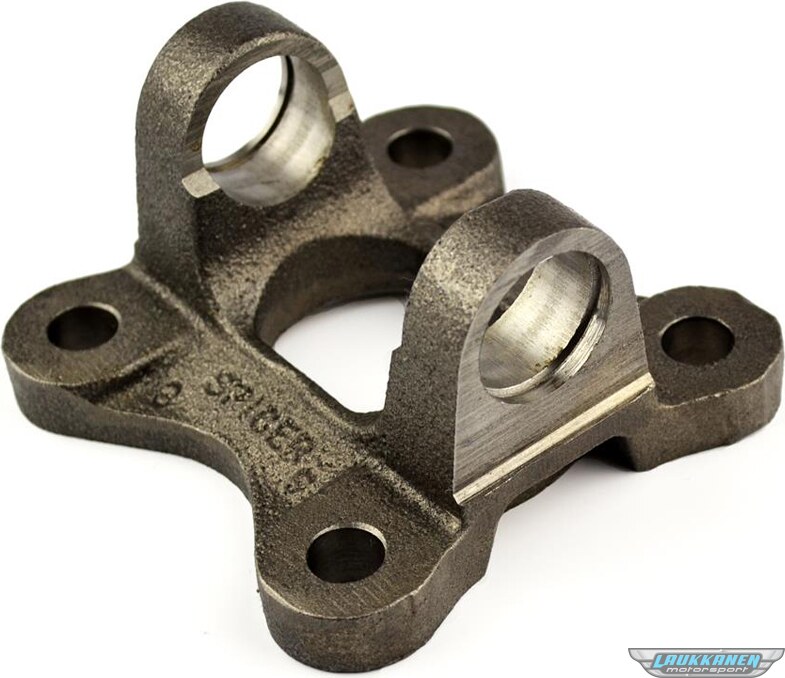

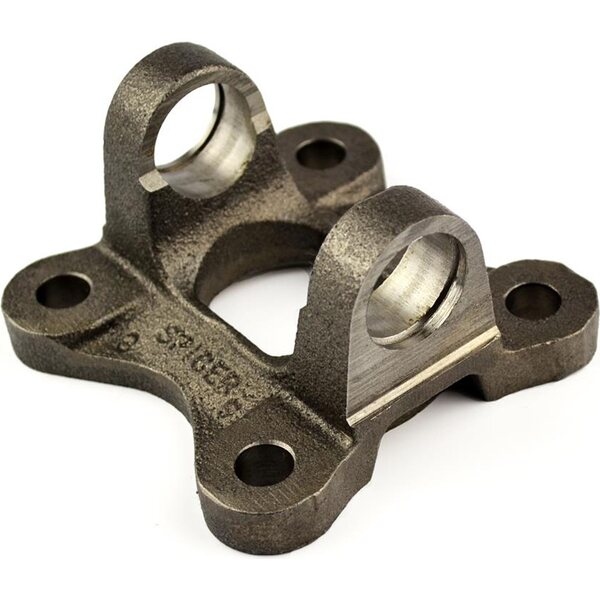

Yoke - Flange - 1310 Series - 5.219 in Diameter - Steel - Natural - Each

Additional information
A - Flange or Swing Diameter = 5.219 inches
B - Bolt Circle Diameter = 4.250 inches
Bolt Hole Diameter = 0.484 inches
Bolt Holes = 4
Bolt Holes = DRILLED
C - Center Pilot Hole Diameter = 2.0 inches
Center Pilot = FEMALE
Series = 1310 Outside Snap Ring Style
U-Joint Width between snap rings = 3.219 inches
D - U-Joint Bearing cap diameter = 1.062 inches
G - Center of u-joint bore to Face of flange = 1.625 inches
X - 3 inches
Y - 3 inches
Special Notes: Bolt holes are equally spaced. Part has hole thru center.


dana.com

Vendor Part Number: 2-2-1379


Den omtrentlige størrelsen på det pakkede produktet eller salgspakken er 128 x 153 x 128 mm.


U-Joint Type
1310


Yoke Type
Flange Yoke


Vekt
1 kg(Produktet kan ha en lett salgspakke.)


Tilgjengelighet
Umiddelbart
