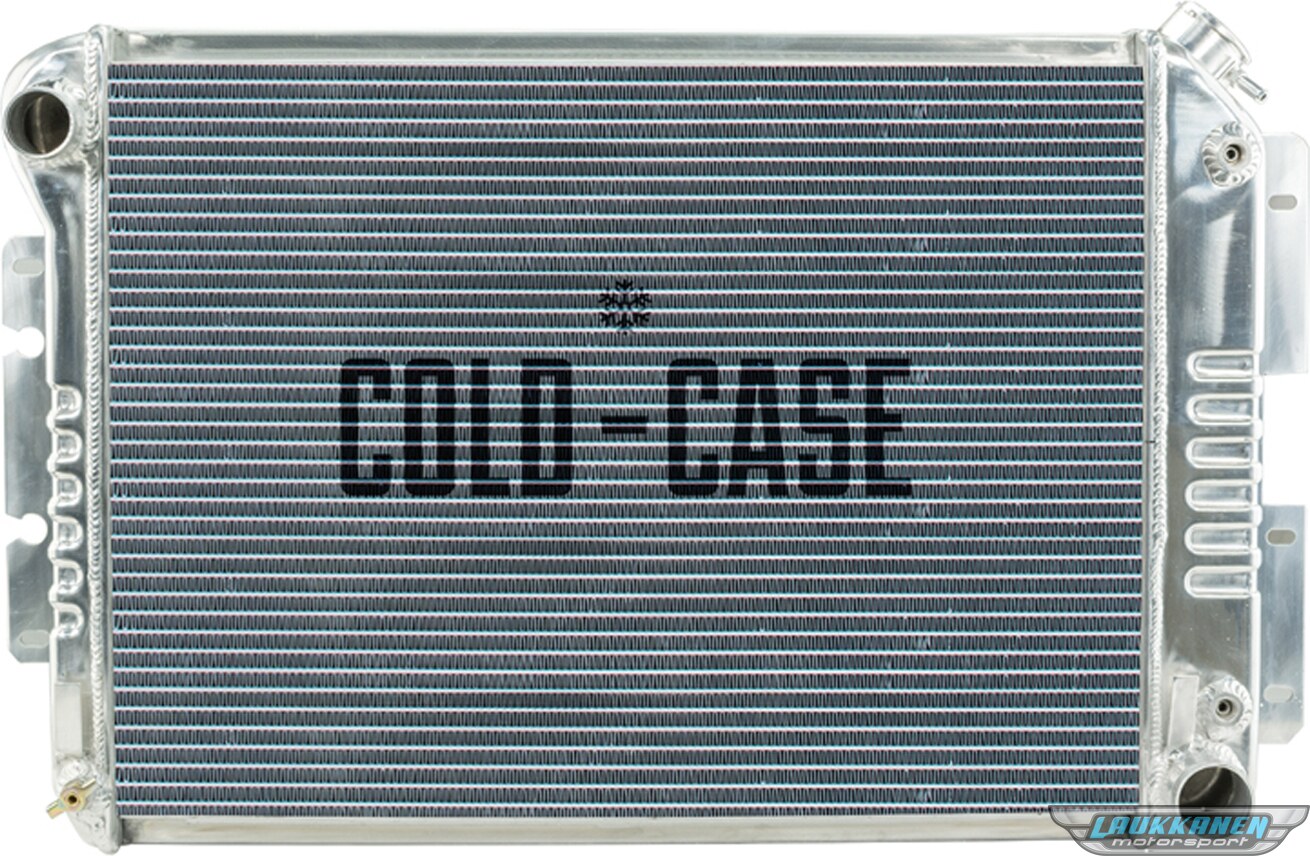

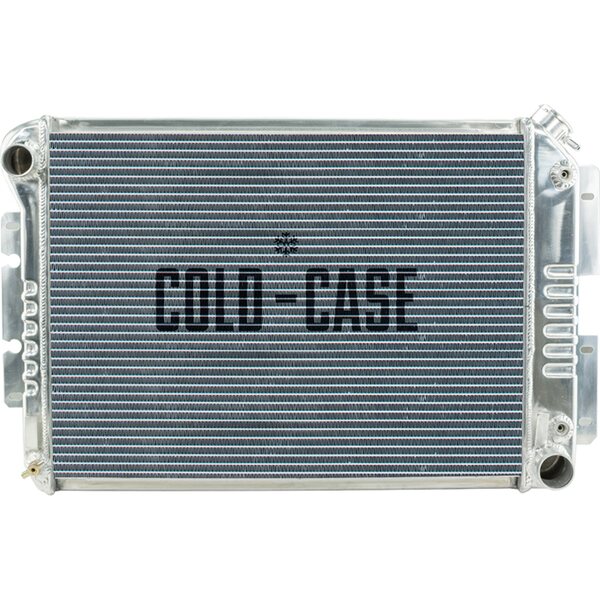

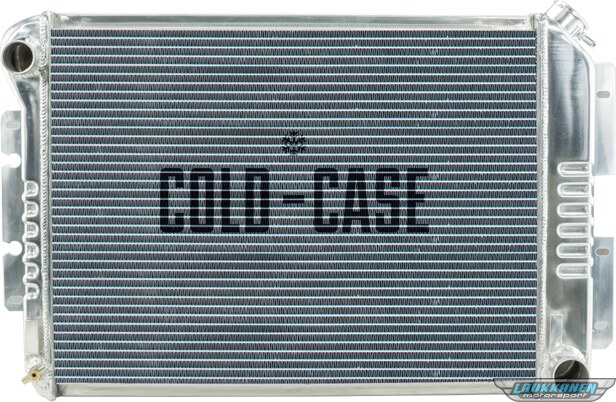

Cold Case Radiators - CHC11A - 69 Camaro Bb / Firebird Auto Transmission Aluminum

1967-1969 GM F-Body Aluminum Performance Radiator. AT Cars. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
Fits:

• 67-69 Firebird
• 67-69 Camaro w/ Big Block
  • Can be used on SB cars. Will need to swap out fan shroud.

  68-71 Nova w/ Bracket Mount

Details:

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic transmission
• Direct fitment for 67-69 Camaro BB/Firebird/Trans Am
• Old Part Number: RFE11AL

Radiator Specs

• Core Height 16.85 inch
• Core Width 23 inch
• Overall Height 18.5 inch
• Overall Width 27.5 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch

16.85 Inch


Vendor Part Number: CHC11A

1967 1969 Pontiac Firebird 400
1967 1969 Pontiac Firebird
1967 1969 Chevrolet Camaro
1967 1967 Pontiac Firebird HO
1967 1969 Chevrolet Camaro RS
1967 1969 Pontiac Firebird Sprint
1967 1969 Chevrolet Camaro SS
1967 1969 Chevrolet Camaro Z28
1968 1969 Pontiac Firebird 350
1969 1969 Pontiac Firebird 350 HO
1969 1969 Pontiac Firebird Trans Am
