Cold Case Radiators - GPG34ASK - 67 Gto W/O Ac Ho/Sd 1.25 Inch Radiator Kit Automatic Transmission

1964-1967 Pontiac GTO Tempest LeMans Aluminum Performance Radiator. AT Cars w/o AC.

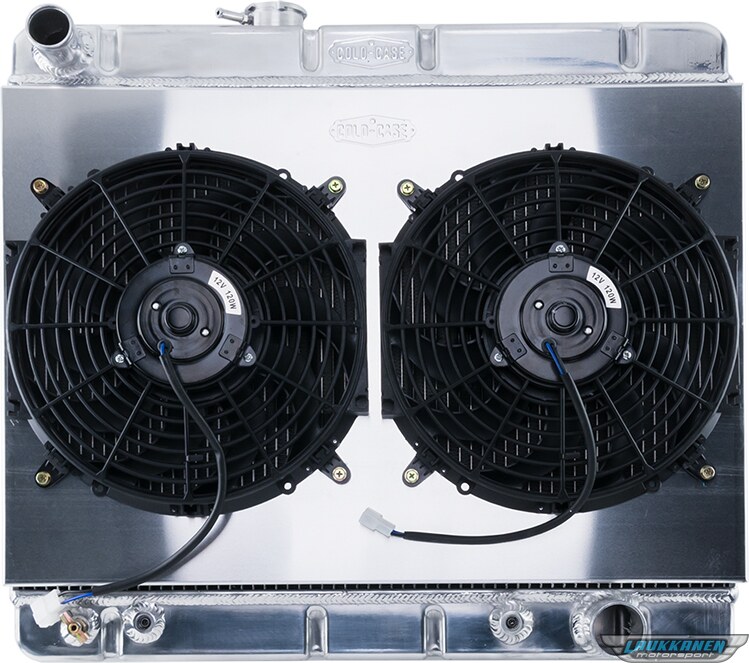

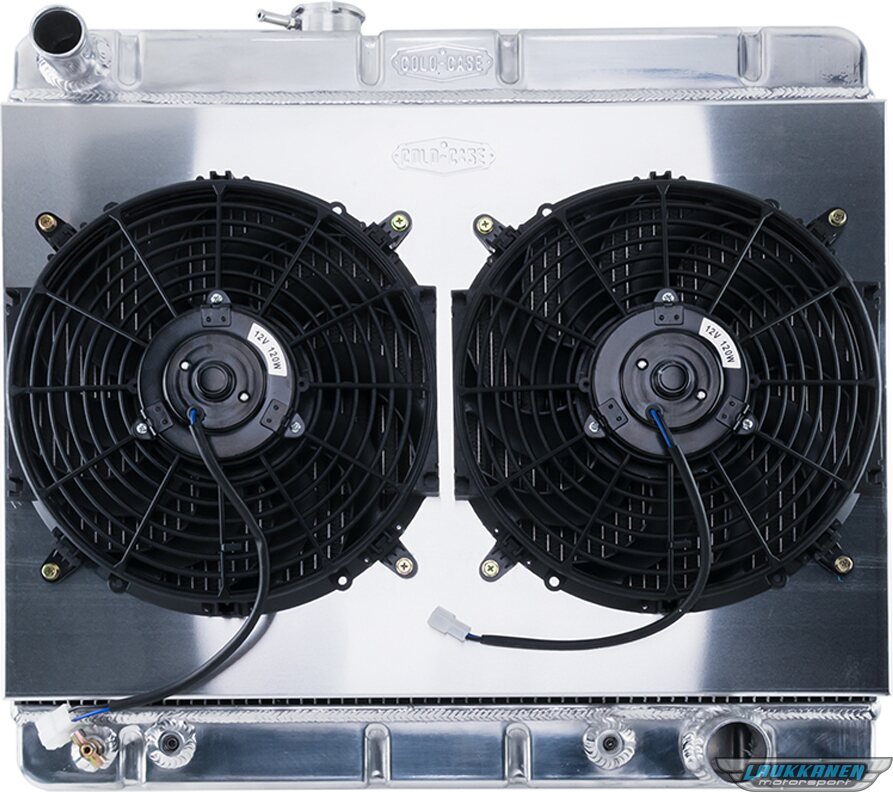

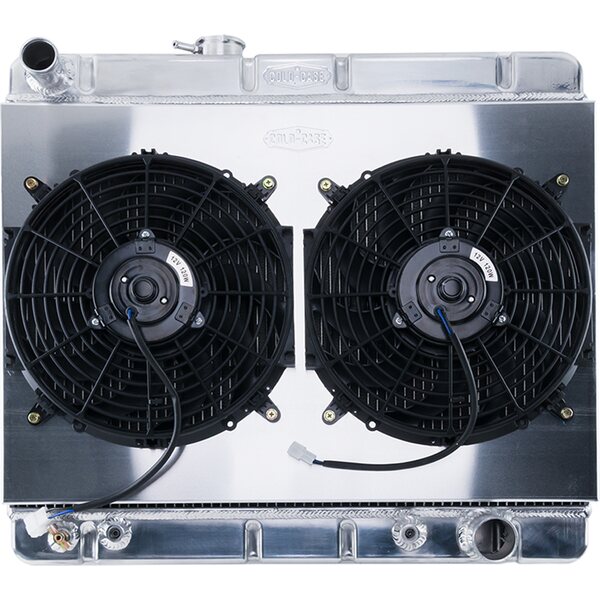

This is the smaller 15.5 Inch core for cars without factory AC. This is our super duty model with 2 rows of 1.25 inch cooling tubes. This is the 66-67 version setup but will work in all 64-67 cars with an non AC support. Comes complete with dual 12 Inch electric fans and aluminum shroud.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1.25 Inch Rows
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto trans (auto-trans-cooler)

Radiator Specs

• Core 15-1/2 Inch
• Width 25-1/4 Inch
• Overall Height 20-1/8 Inch
• Overall Thickness 6 Inch
• Upper Hose 1-1/2 Inch
• Lower Hose 1-13/16 Inch
• Tubes (2) 1.25 Inch Tubes
• Trans Lines 12-1/4 Inch
