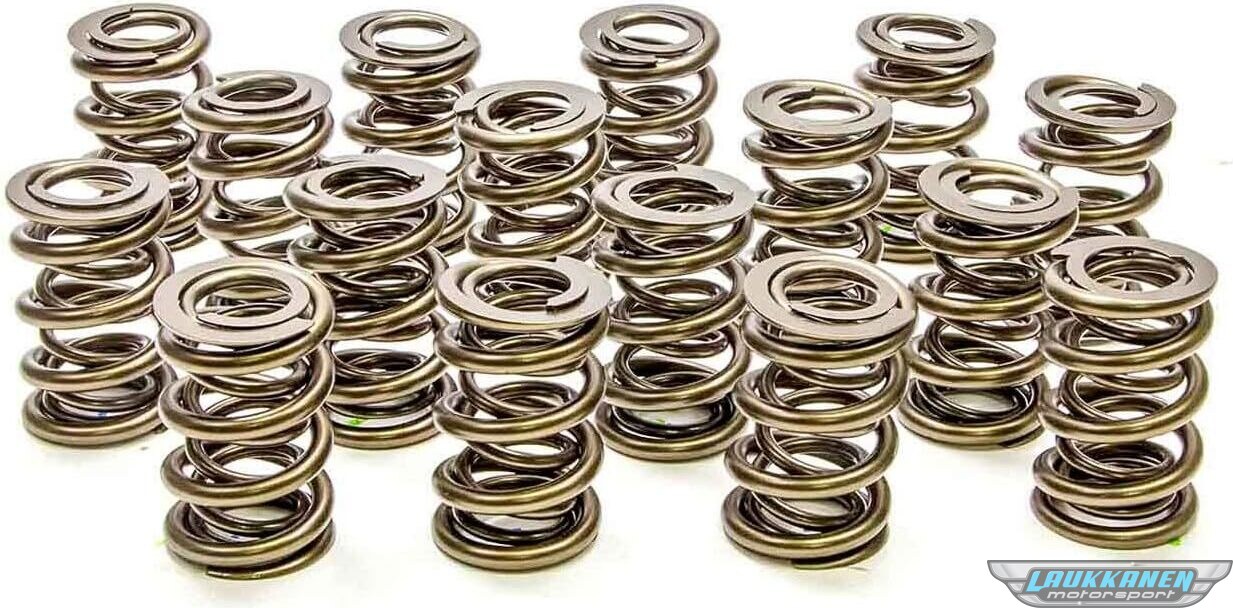

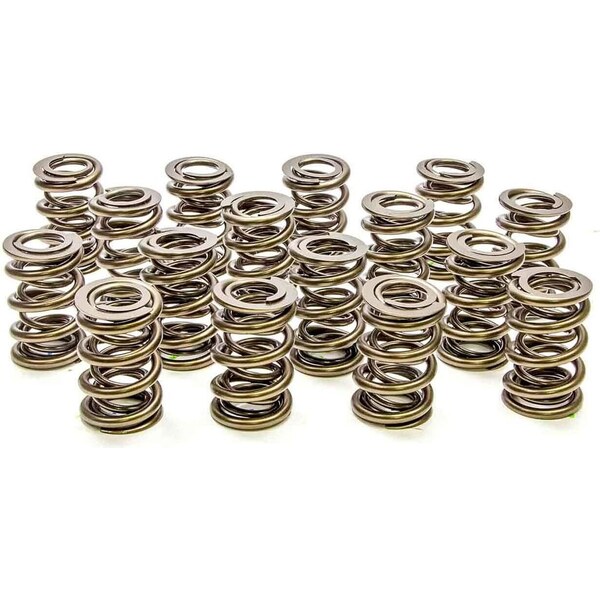

PAC Racing - PAC-1226 - 1.550 Dual Valve Springs (16)

Product Images may differ from the actual product. Image may be a representation of this item.

The price includes any freight from the supplier to the Store

Produktbeskrivelse

Valve Spring - 1200 Series Drag Race - Dual Spring - 663 lb/in Spring Rate - 1.150 in Coil Bind - 1.550 in OD - Set of 16

Additional information
Outer Diameter: 1.550 in
Outer Inner Diameter: 1.100 in
Middle Inner Diameter: N/A
Inner Diameter: 0.788 in
Installed Height (Valve Closed): 2.000 in
Seat Pressure @ 2.000 in: 275 lbs
Open Pressure @ 1.200 in: 805 lbs
Spring Rate: 663 lb/in
Max Valve Lift: 0.800 in
Coil Bind Height: 1.150 in

Recommended components:
Retainers (PAC 500 Series): R506, R541
Retainers (PAC 600 Series): R606, R641, R661
Spring Seats: S105, S106, S139

Application notes:
Smaller diameter spring for bracket racing applications.

racingsprings.com

Vendor Part Number: PAC-1226

Pac Racing Catalog -24
Pac Racing Catalog -15

Always verify specifications with the manufacturer and engine builder before final assembly.

Den omtrentlige pakkestørrelse eller størrelsen på produktets pakke er 102 x 92 x 384 mm.

Spring Type
Dual

Vægt
2,8 kg(Produktet kan have let salgspakning.)
