PAC Racing - PAC-1222X - Dual Valve Springs - GM LS (16)

Product Images may differ from the actual product. Image may be a representation of this item.

The price includes any freight from the supplier to the Store

Produktbeskrivelse

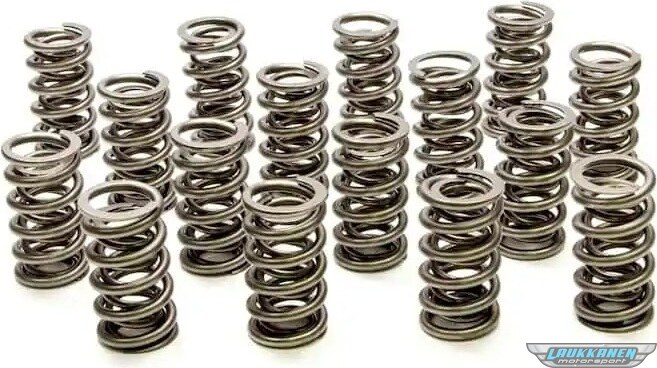

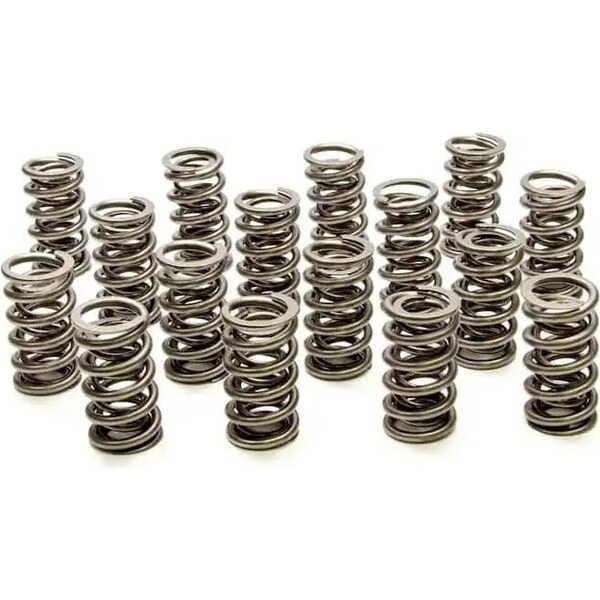

Valve Spring - RPM Series - Dual Spring - 425 lb/in Spring Rate - 1.055 in Coil Bind - 1.280 in OD - GM LS-Series - Set of 16

Additional information
Outer Diameter: 1.280 in
Inner Diameter (Outer): 0.925 in
Inner Diameter (Inner): 0.655 in
Installed Height (Valve Closed): 1.800 in
Seat Pressure @ 1.800 in: 180 lbs
Open Pressure @ 1.100 in: 480 lbs
Spring Rate: 425 lb/in
Max Valve Lift: 0.700 in
Coil Bind Height: 1.055 in

Recommended components:
Retainers (PAC 300 Series): R355
Retainers (PAC 400 Series): R455
Retainers (PAC 600 Series): R655
Spring Seats: S121, S141

Application notes:
LS valve spring for aftermarket cylinder heads.

racingsprings.com

Vendor Part Number: PAC-1222X

Pac Racing Catalog -24
Pac Racing Catalog -15

Always verify specifications with the manufacturer and engine builder before final assembly.

Den omtrentlige pakkestørrelse eller størrelsen på produktets pakke er 103 x 92 x 388 mm.

Engine
Chevy LS

Spring Type
Dual

Vægt
1,8 kg(Produktet kan have let salgspakning.)
