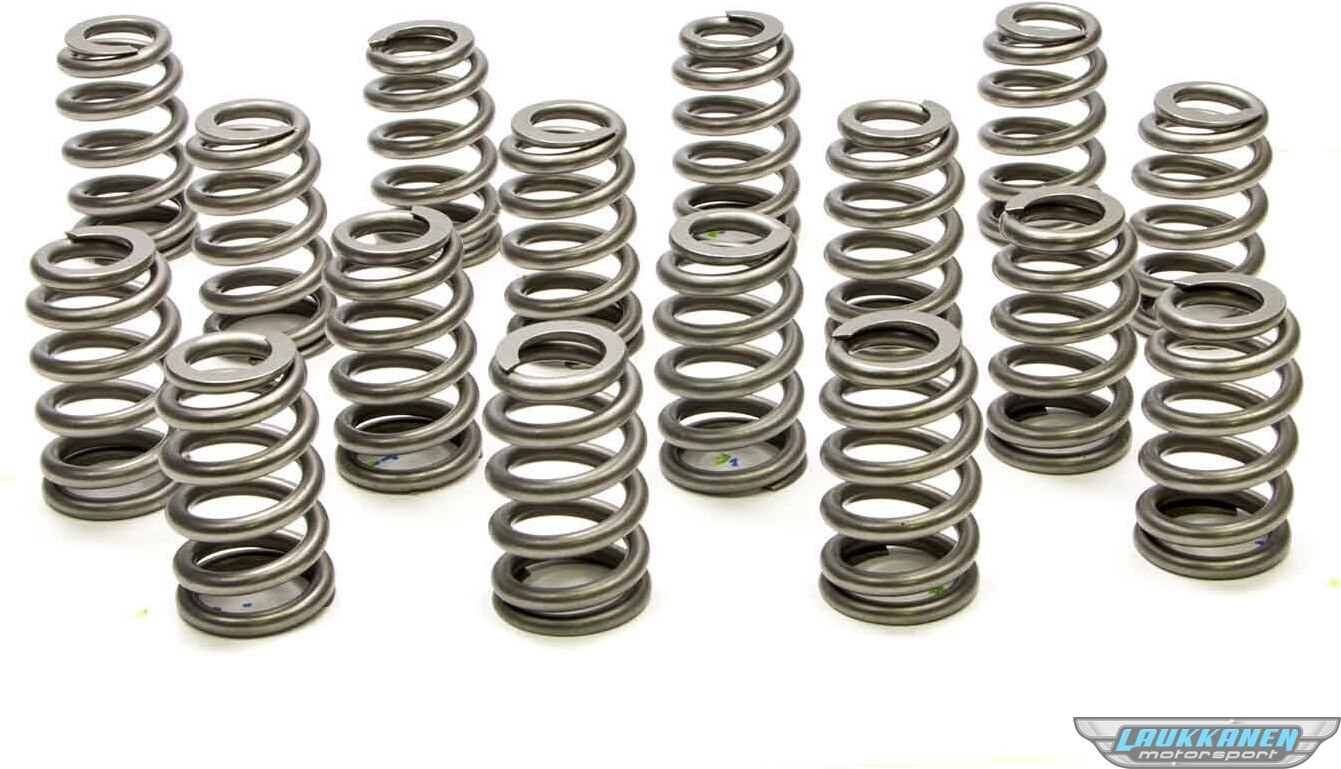

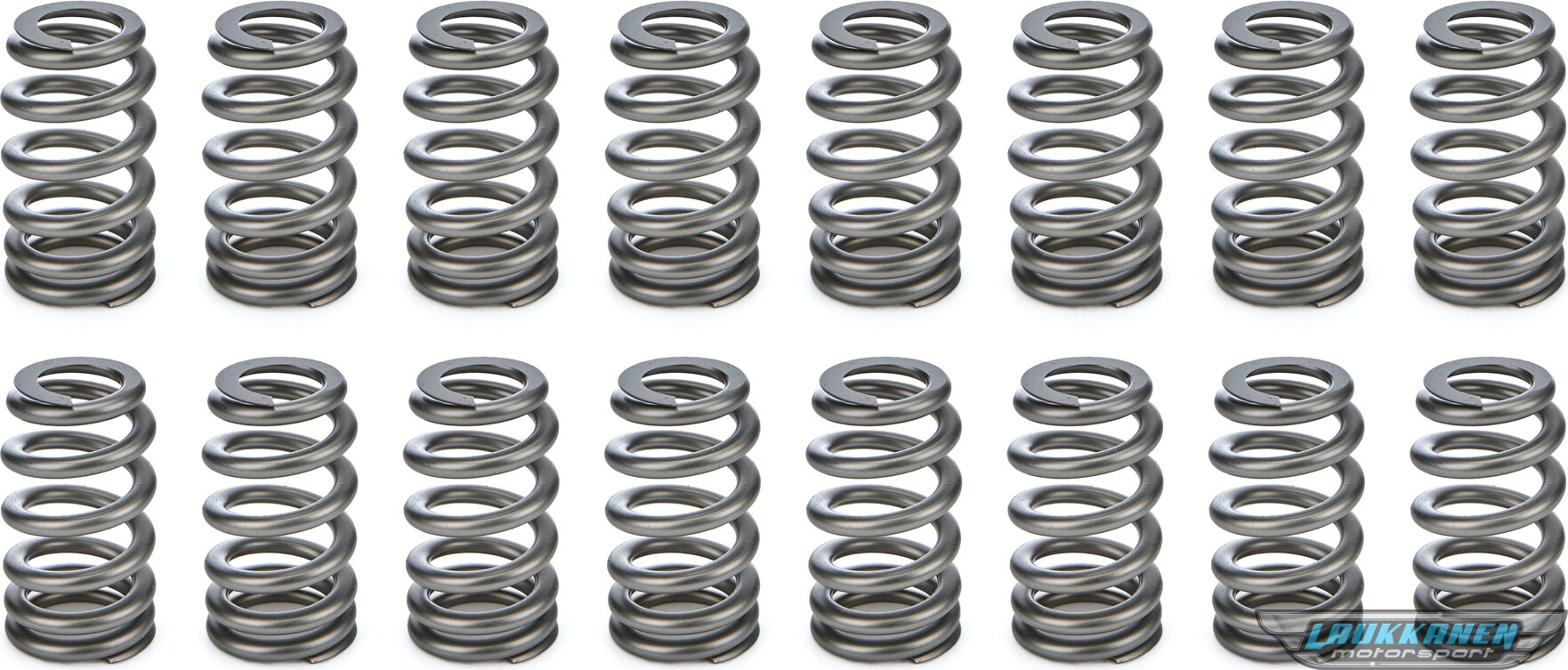

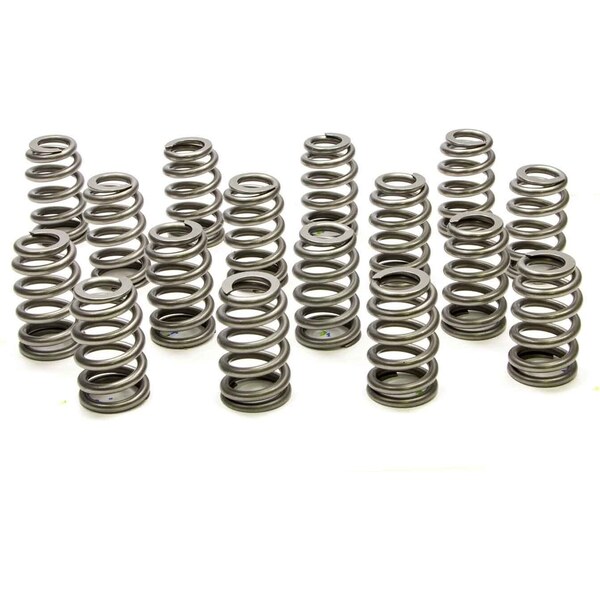

PAC Racing - PAC-1255X - 1.445 Valve Springs - Ovate Beehive (16)

Product Images may differ from the actual product. Image may be a representation of this item.

The price includes any freight from the supplier to the Store

Produktbeskrivelse

Valve Spring - RPM Series - Ovate Beehive Spring - 408 lb/in Spring Rate - 1.220 in Coil Bind - 0.990 in / 1.445 in OD - Set of 16

Additional information
Outer Diameter (Bottom): 1.445 in
Inner Diameter (Bottom): 1.186 in
Outer Diameter (Top): 0.990 in
Inner Diameter (Top): 0.731 in
Installed Height (Valve Closed): 1.950 in
Seat Pressure @ 1.950 in: 175 lbs
Open Pressure @ 1.300 in: 440 lbs
Spring Rate: 408 lb/in
Coil Bind Height: 1.220 in
Max Valve Lift: 0.700 in

Recommended components:
Retainers (PAC 300 Series): R313
Retainers (PAC 500 Series): R513
Spring Seats: S112, S113

Application notes:
High performance valve spring for street and strip use.

racingsprings.com

Vendor Part Number: PAC-1255X

Pac Racing Catalog -24
Pac Racing Catalog -15

Always verify specifications with the manufacturer and engine builder before final assembly.

Den omtrentlige pakkestørrelse eller størrelsen på produktets pakke er 102 x 89 x 382 mm.

Spring Type
Beehive

Vægt
1,9 kg(Produktet kan have let salgspakning.)
