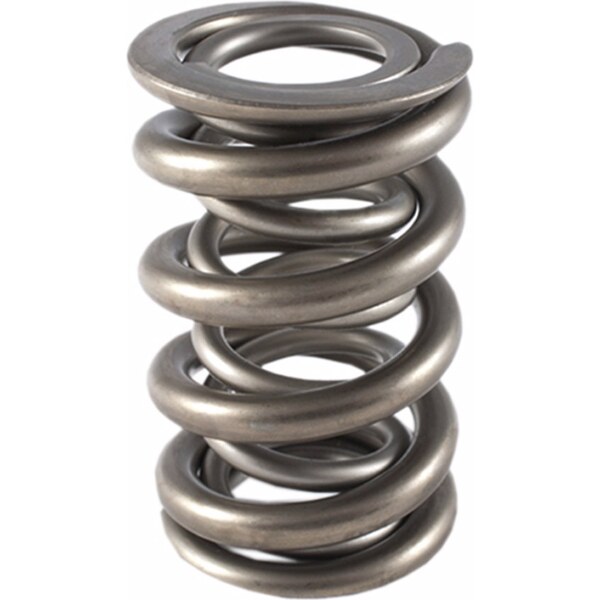

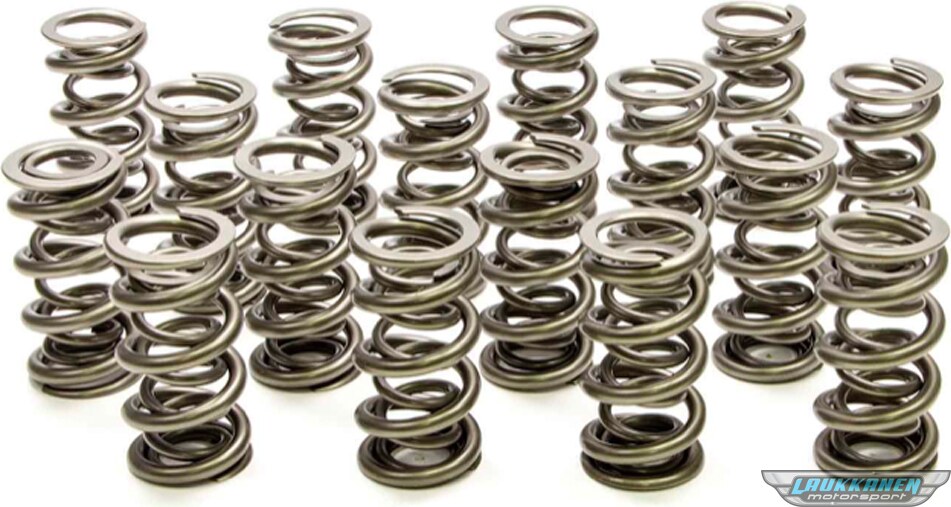

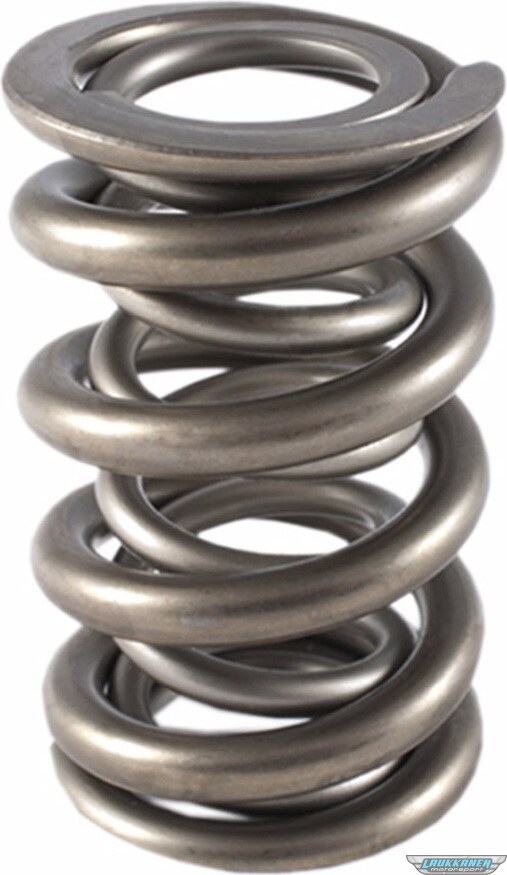

PAC Racing - PAC-1355 - 1.500 Dual Valve Spring (1)

Product Images may differ from the actual product. Image may be a representation of this item.

The price includes any freight from the supplier to the Store

Produktbeskrivelse

Valve Spring - 1300 Series Drag Race - Dual Spring - 780 lb/in Spring Rate - 1.130 in Coil Bind - 1.500 in OD - Each

Additional information
Outer Diameter (OD): 1.500 in
Spring ID (Outer): 1.050 in
Inner Diameter (ID): 0.726 in
Installed Height (Valve Closed): 2.175 in
Seat Pressure @ 2.175 in: 420 lbs
Open Pressure @ 1.175 in: 1200 lbs
Spring Rate: 780 lb/in
Coil Bind Height: 1.130 in
Max Valve Lift: 1.000 in

Recommended components:
Retainers (PAC 400 Series): R408
Retainers (PAC 500 Series): R508, R509, R544
Retainers (PAC 600 Series): R608, R609, R644
Spring Seats: S110, S126, S134, S132

Application notes:
TAFC and Pro-Mod alcohol engine applications.

racingsprings.com

Vendor Part Number: PAC-1355

Pac Racing Catalog -24
Pac Racing Catalog -15

Always verify specifications with the manufacturer and engine builder before final assembly.

Den omtrentlige pakkestørrelse eller størrelsen på produktets pakke er 97 x 46 x 168 mm.

Engine
Universal

Spring Type
Dual

Vægt
0,2 kg(Produktet kan have let salgspakning.)
