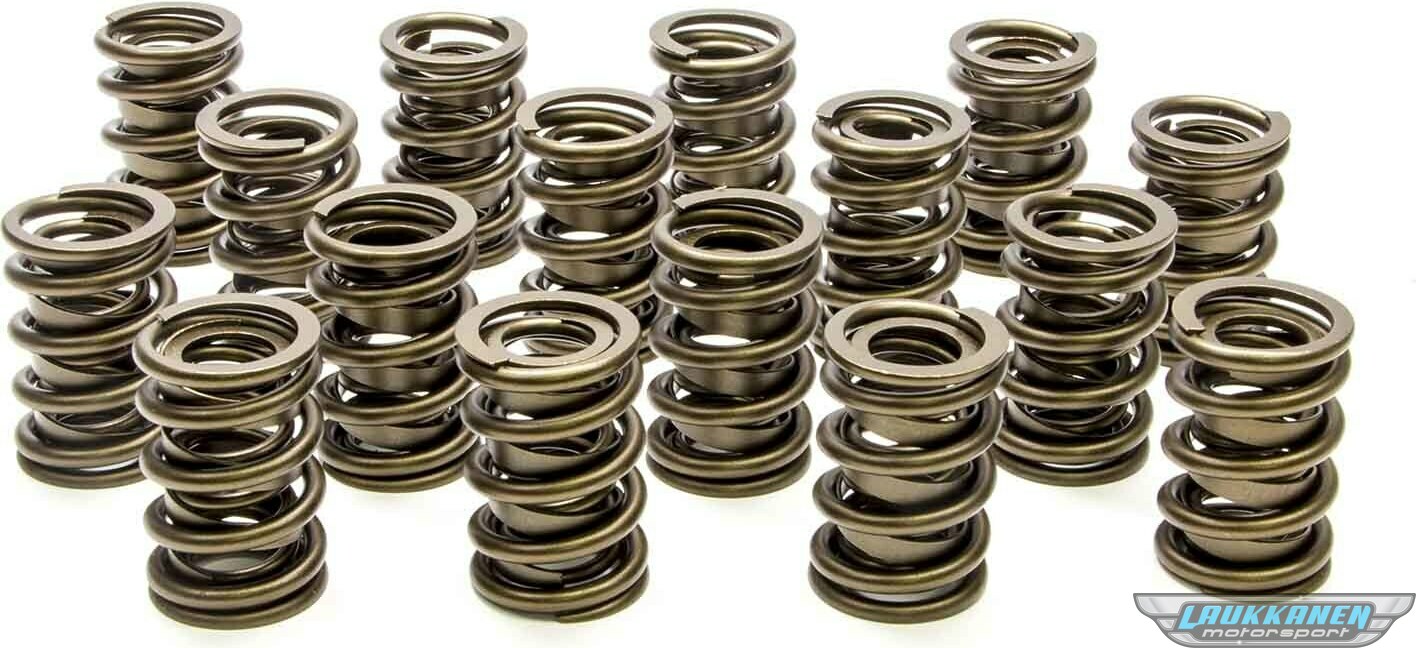

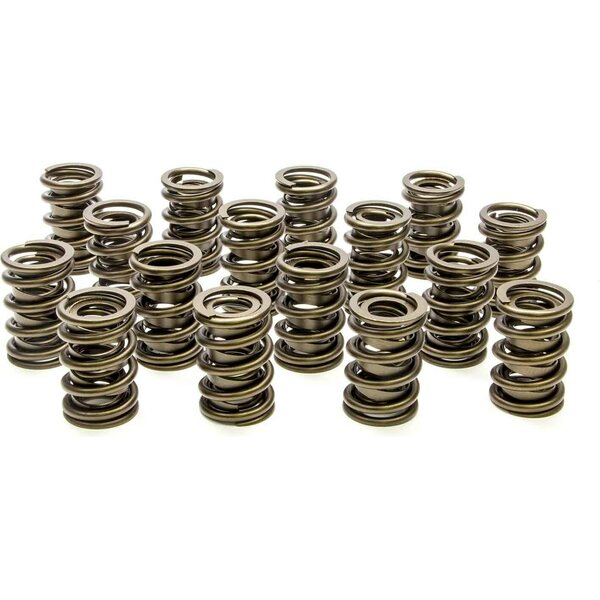

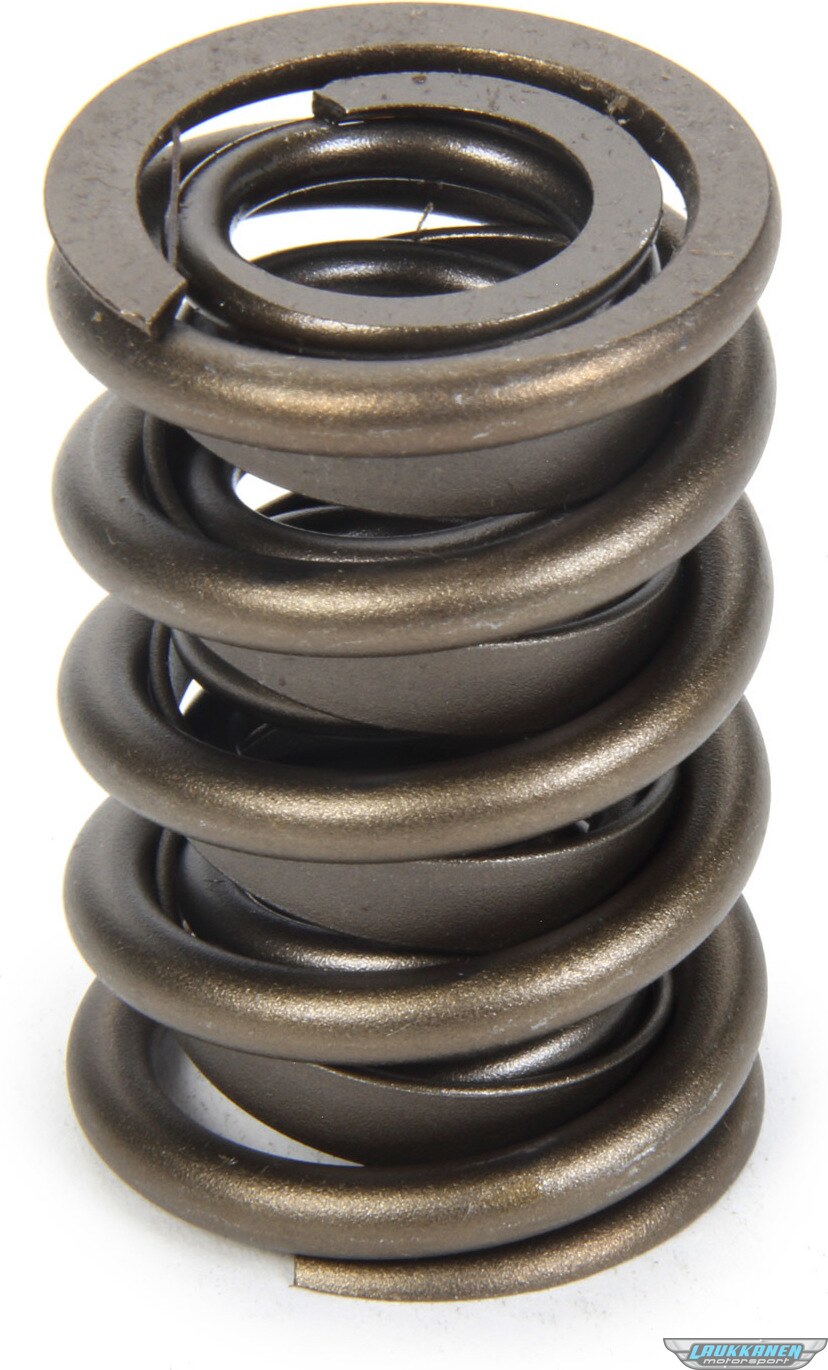

PAC Racing - PAC-1924 - Valve Spring - HR Series (1)

Product Images may differ from the actual product. Image may be a representation of this item.

The price includes any freight from the supplier to the Store

Produktbeskrivelse

Valve Spring - Hot Rod Series - Dual Spring / Damper - 431 lb/in Spring Rate - 1.125 in Coil Bind - 1.540 in OD - Each

Additional information
Outer Diameter: 1.540 in
Inner Diameter (Outer): 1.140 in
Damper: Yes
Inner Diameter (Inner): 0.754 in
Installed Height (Valve Closed): 1.900 in
Seat Pressure @ 1.900 in: 144 lbs
Open Pressure @ 1.300 in: 403 lbs
Spring Rate: 431 lb/in
Max Valve Lift: 0.650 in
Coil Bind Height: 1.125 in

Recommended components:
Retainers (PAC 300 Series): R387
Spring Seats: S117, S118

Application notes:
Big block hydraulic roller camshaft applications.

racingsprings.com

Vendor Part Number: PAC-1924

Pac Racing Catalog -24
Pac Racing Catalog -15

Always verify specifications with the manufacturer and engine builder before final assembly.

Den omtrentlige pakkestørrelse eller størrelsen på produktets pakke er 51 x 45 x 129 mm.

Engine
Universal

Spring Type
Dual w/Damper

Vægt
0,2 kg(Produktet kan have let salgspakning.)
