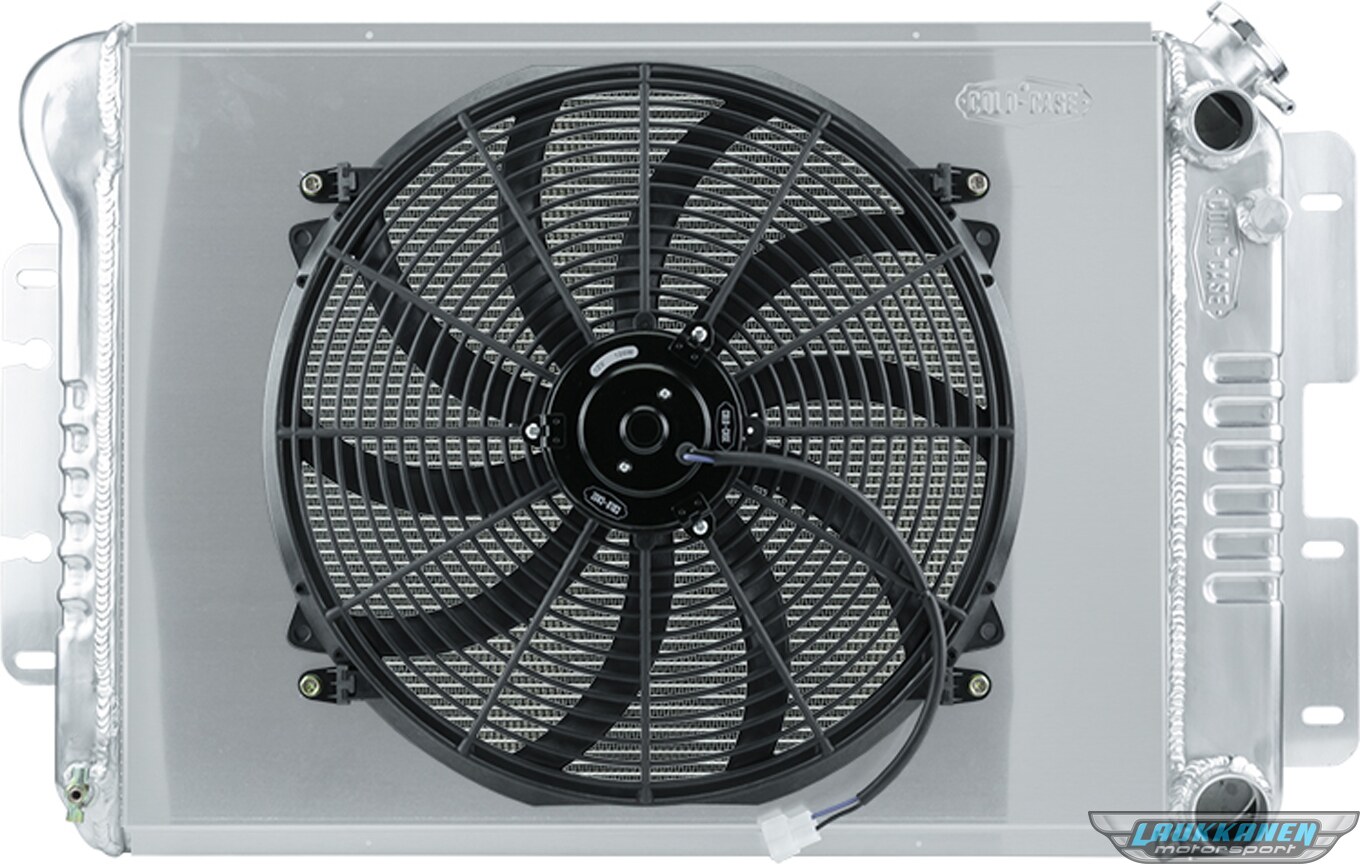

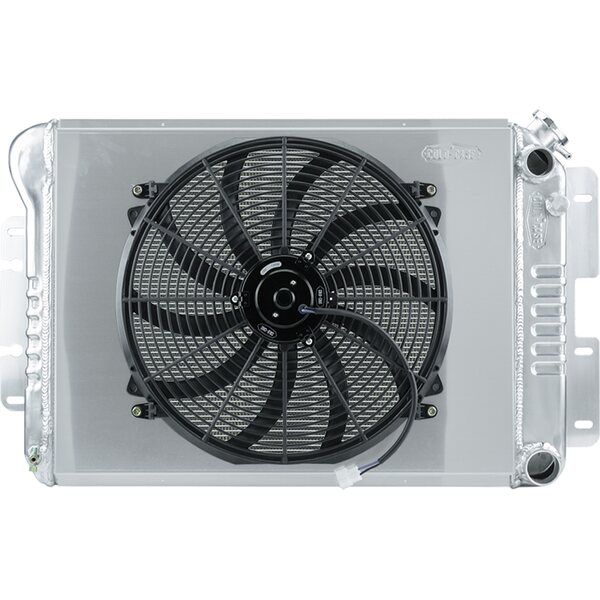

Cold Case Radiators - CHC547AK - 69 Camaro/Firebird Ls Swap Aluminum Radiator And 16 Inch Fan Kit

67-69 Camaro/Firebird LS SWAP Aluminum Radiator And 16 Inch Fan Kit. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• (2) 1.25 inch Tubes
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• Dual Flow Design
• Direct fitment for 67-69 F-Body cars with LS motors
• Old Part Number: RPE547AK

Radiator Specs

• Core Height 16.85 inch
• Core Width 23 inch
• Overall Height 19 inch
• Overall Width 30 inch
• Overall Thickness 6 inch
• Upper Hose 1.22 inch
• Lower Hose 1.37 inch
• Tubes (2) 1.25 inch Tubes

Valmistajan osanumero: CHC547AK

1967 1969 Pontiac Firebird 400
1967 1969 Pontiac Firebird
1967 1969 Chevrolet Camaro
1967 1967 Pontiac Firebird HO
1967 1969 Chevrolet Camaro RS
1967 1969 Pontiac Firebird Sprint
1967 1969 Chevrolet Camaro SS
1967 1969 Chevrolet Camaro Z28
1968 1969 Pontiac Firebird 350
1969 1969 Pontiac Firebird 350 HO
1969 1969 Pontiac Firebird Trans Am
