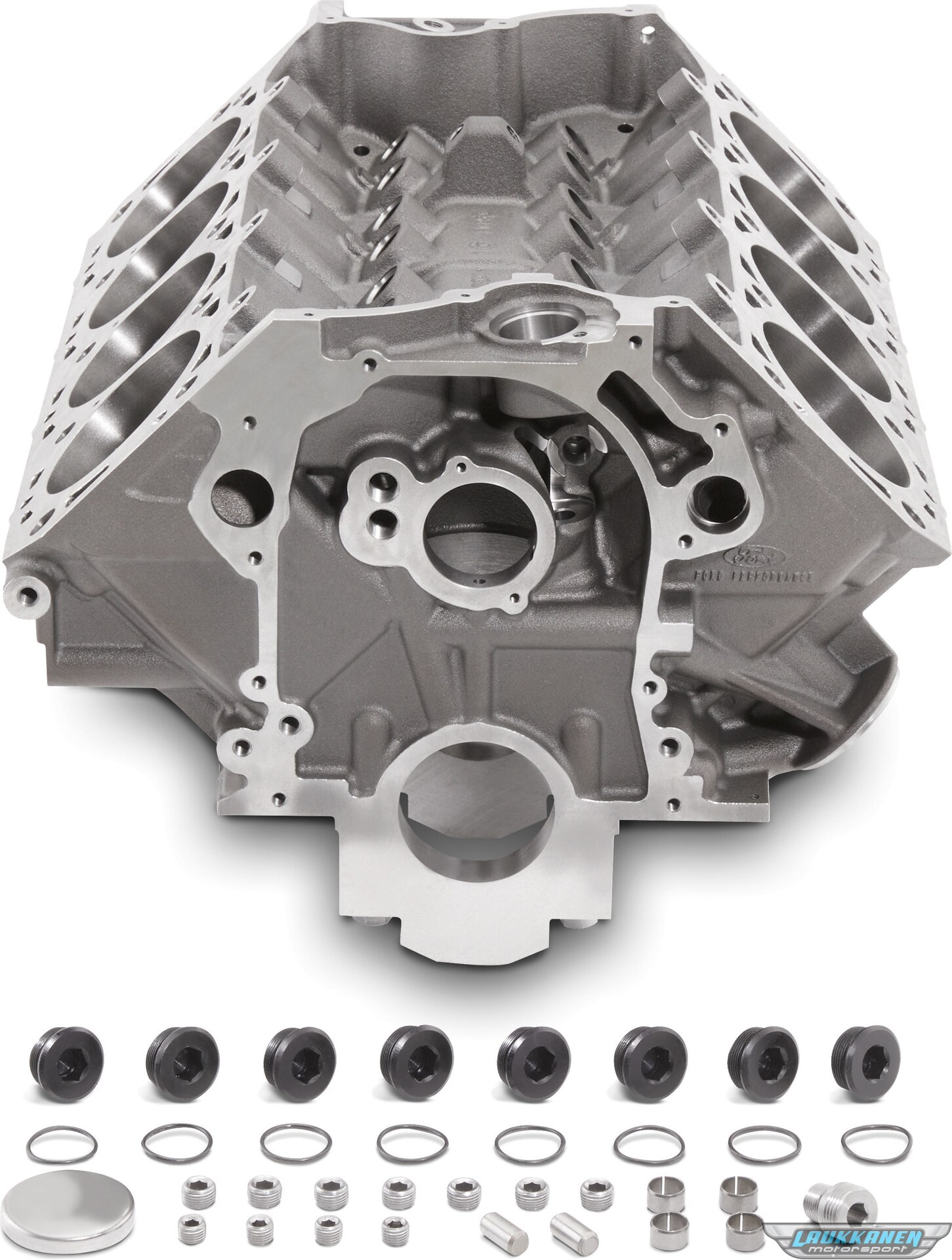

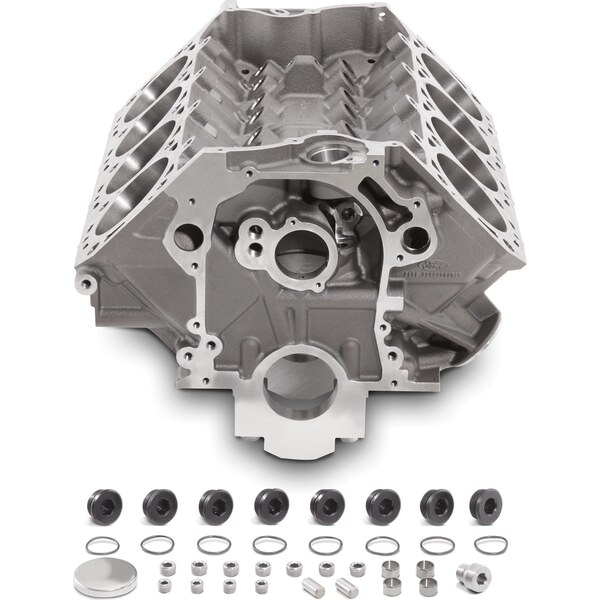

Ford Racing - M-6010-A460Xbb - 460 Big Bore Iron Block 4.490 Rough Bore

Engine - Bare Block - 4.490 in Bore - 10.322 in Deck - 4-Bolt Main - 2-Piece Seal - Iron - Big Block Ford - Each

Lisätiedot

New 460 engine block replaces the M-6010-A460BB block and is manufactured with all new tooling.

• 10.322" deck Height plus or minus .005"

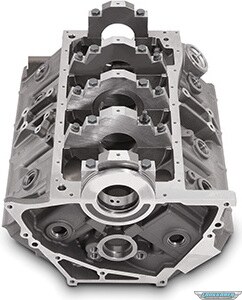

• Cast iron Block with 4-bolt main caps on journals 2, 3, and 4
• Nodular iron main caps
• Can be bored/stroked to produce 605 cu. in.
• Siamese cylinder bores
• Rough bored to 4.490" +- .003"
• Maximum recommended bore 4.625"
• Wet sump oiling design
• 3.00" main journal diameter
• Weighs approximately 275 lbs.
• High-strength block for professional competition
• NOTE: Siamese blocks are solid casting between the cylinder bores. There are no water passages between them. This is done to increase the strength of the block.
• Also available in standard bore version, part number: M-6010-A460X

performanceparts.ford.com

Valmistajan osanumero: M-6010-A460Xbb

Ford Performance 22 Catalog
