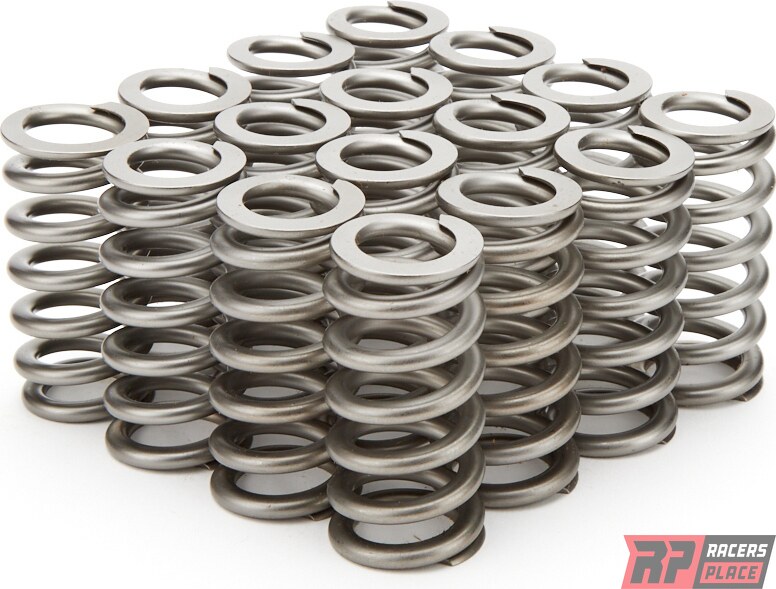

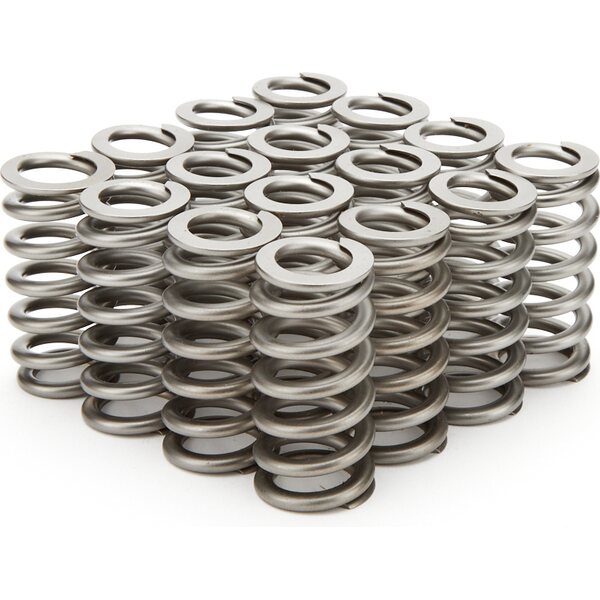

PAC Racing - PAC-1214X - 1.061 Valve Springs - Ovate Beehive (16)

Valve Spring - RPM Series - Ovate Beehive Spring - 275 lb/in Spring Rate - 1.013 in Coil Bind - 0.999 in / 1.061 in OD - GM LS-Series - Set of 16

Lisätiedot
Outer Diameter (Bottom): 1.071 in
Inner Diameter (Bottom): 1.071 in
Outer Diameter (Top): 0.999 in
Inner Diameter (Top): 0.636 in
Installed Height (Valve Closed): 1.680 in
Seat Pressure @ 1.680 in: 120 lbs
Open Pressure @ 1.080 in: 285 lbs
Spring Rate: 275 lb/in
Coil Bind Height: 1.013 in
Max Valve Lift: 0.600 in

Recommended components:
Retainers: N/A
Spring Seats: N/A

Käyttöhuomiot:
Ford 4.6L 2V drop-in spring. Higher load than 1214 for performance use.


racingsprings.com

Valmistajan osanumero: PAC-1214X

Pac Racing Catalog -24
Pac Racing Catalog -15

Tekniset tiedot tulee aina varmistaa valmistajalta ja moottorinrakentajalta ennen lopullista kokoonpanoa.
