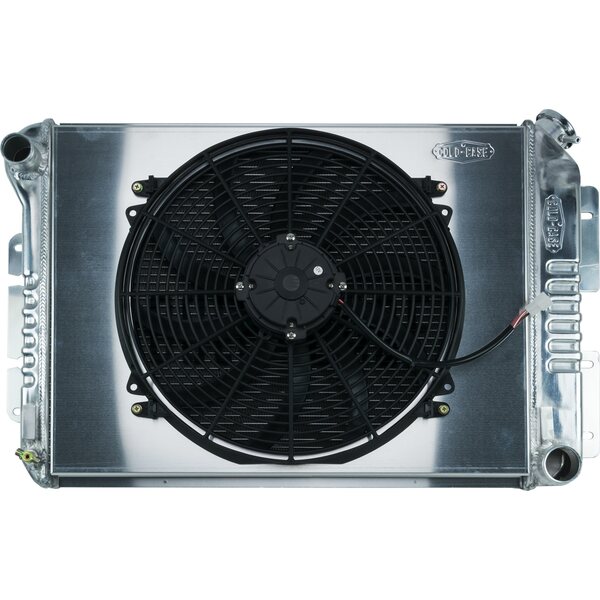

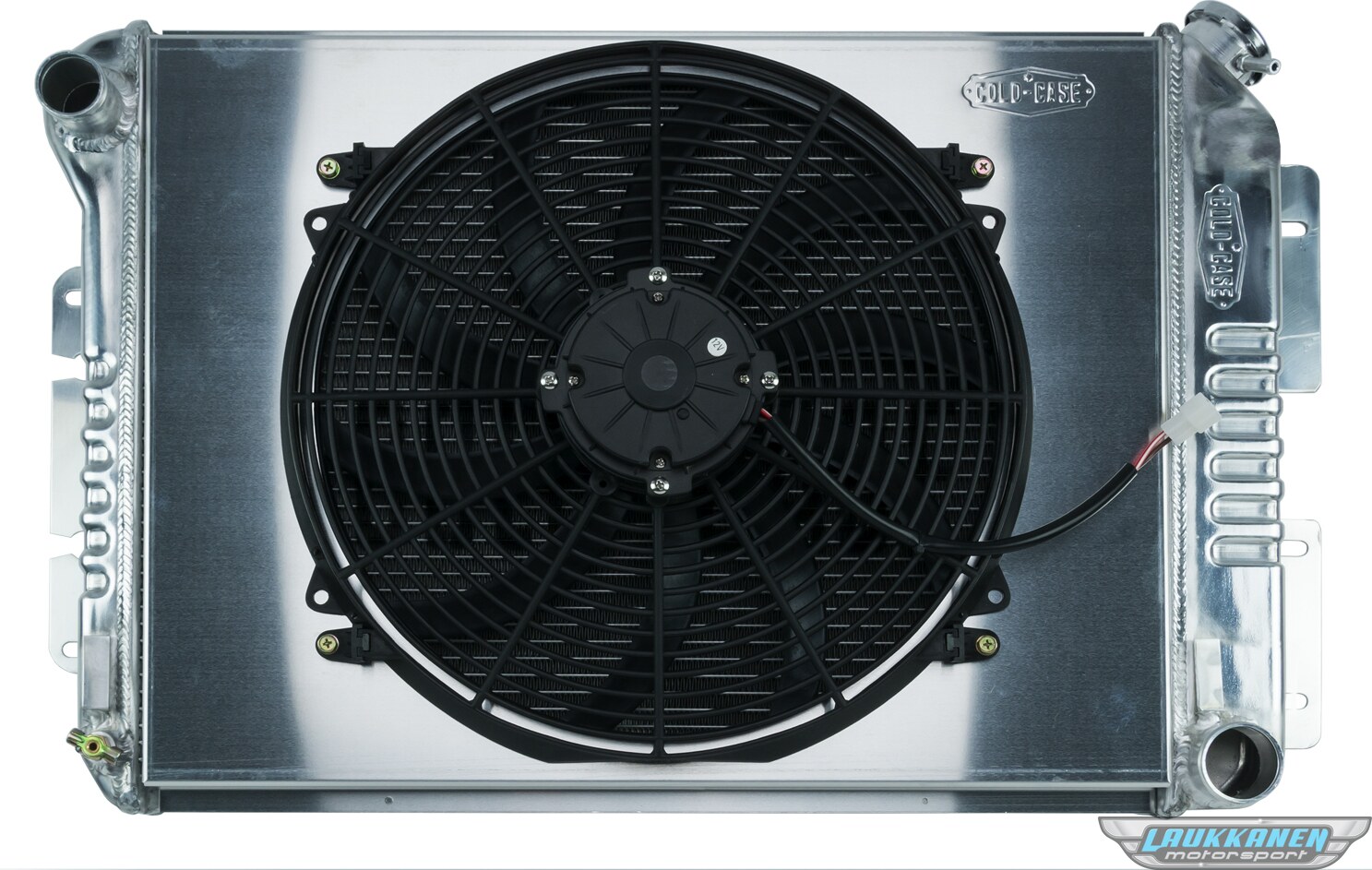

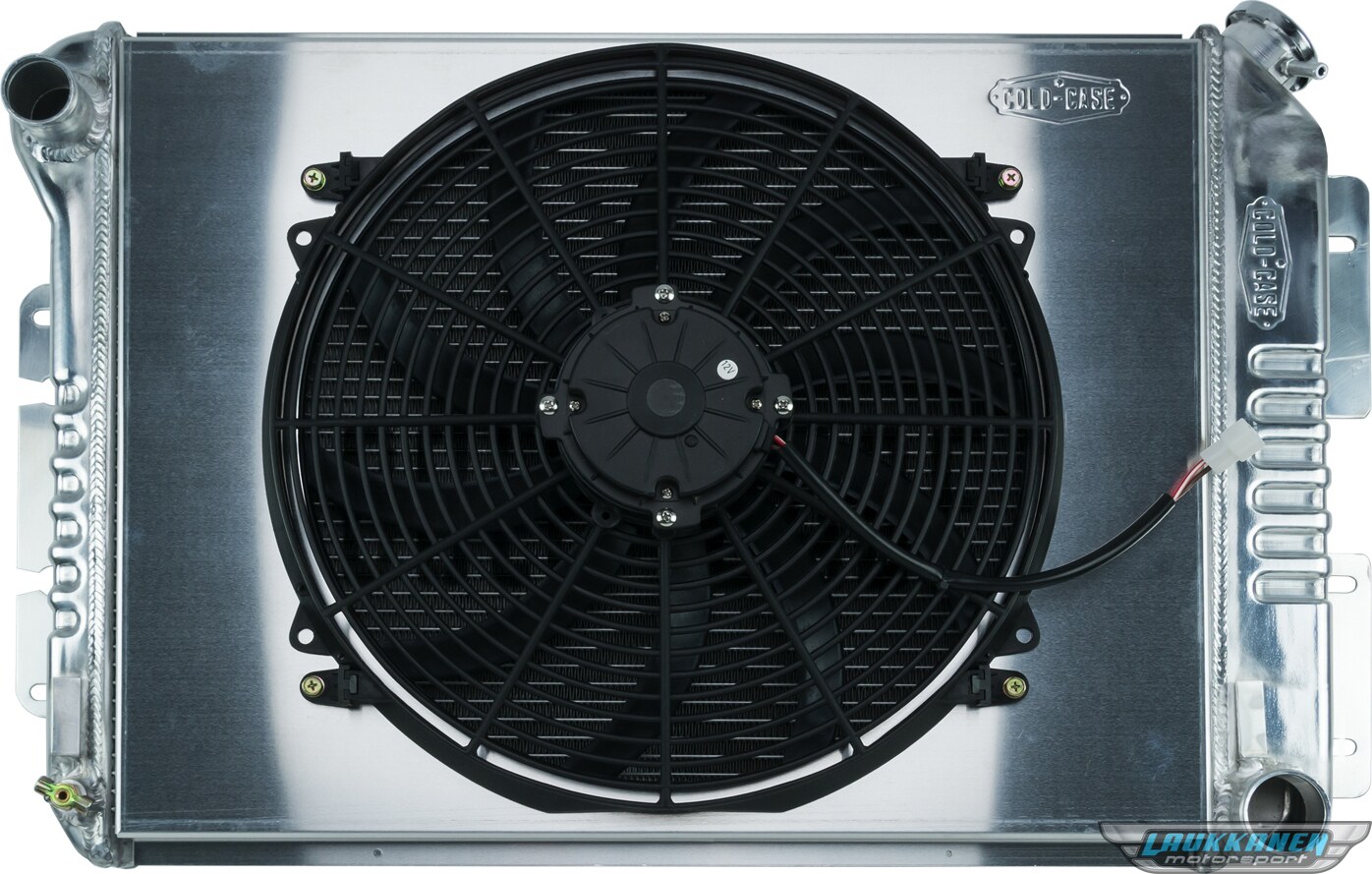

Cold Case Radiators - CHC11K - 69 Camaro Bb / Firebird Manual Transmission Aluminum Radiator And 16 Inch Fan Kit

67-69 Camaro Big Block / Firebird Manual Transmission Aluminum Radiator And 16 Inch Fan Kit. MT Cars. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
Fits:
67-69 Firebird
67-69 Camaro
68-71 Nova w/ bracket mount

Details:

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For Manual trans
• Direct fitment for 67-69 Camaro BB/Firebird/Trans Am
• Old Part Number: RFE11LK

Radiator Specs

• Core Height:16.85 inch
• Core Width: 23 inch
• Overall Height: 18.5 inch
• Overall Width:27.5 inch
• Overall Thickness: 6 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch

16.85 Inch


Valmistajan osanumero: CHC11K

1967 1969 Pontiac Firebird 400
1967 1969 Pontiac Firebird
1967 1969 Chevrolet Camaro
1967 1967 Pontiac Firebird HO
1967 1969 Chevrolet Camaro RS
1967 1969 Pontiac Firebird Sprint
1967 1969 Chevrolet Camaro SS
1967 1969 Chevrolet Camaro Z28
1968 1969 Pontiac Firebird 350
1969 1969 Pontiac Firebird 350 HO
1969 1969 Pontiac Firebird Trans Am
