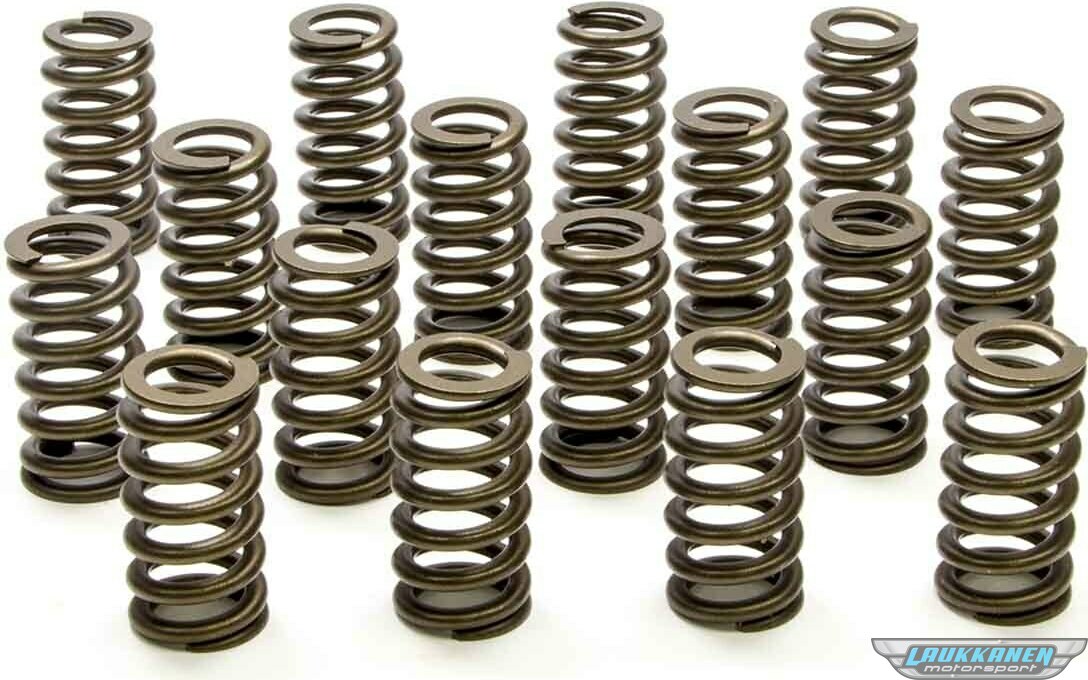

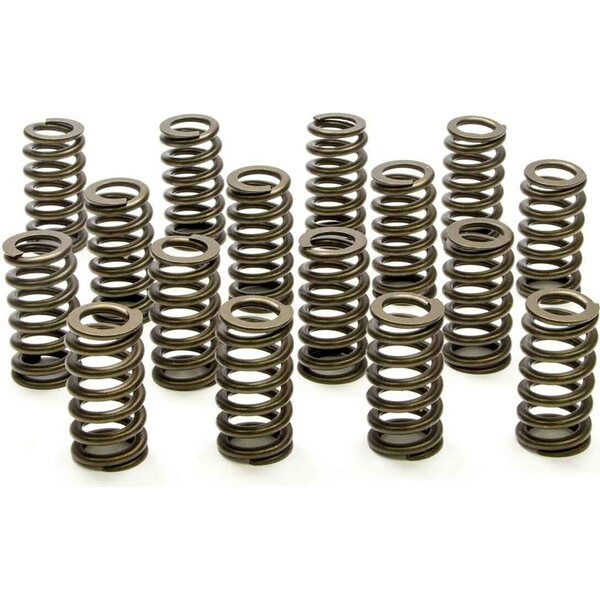

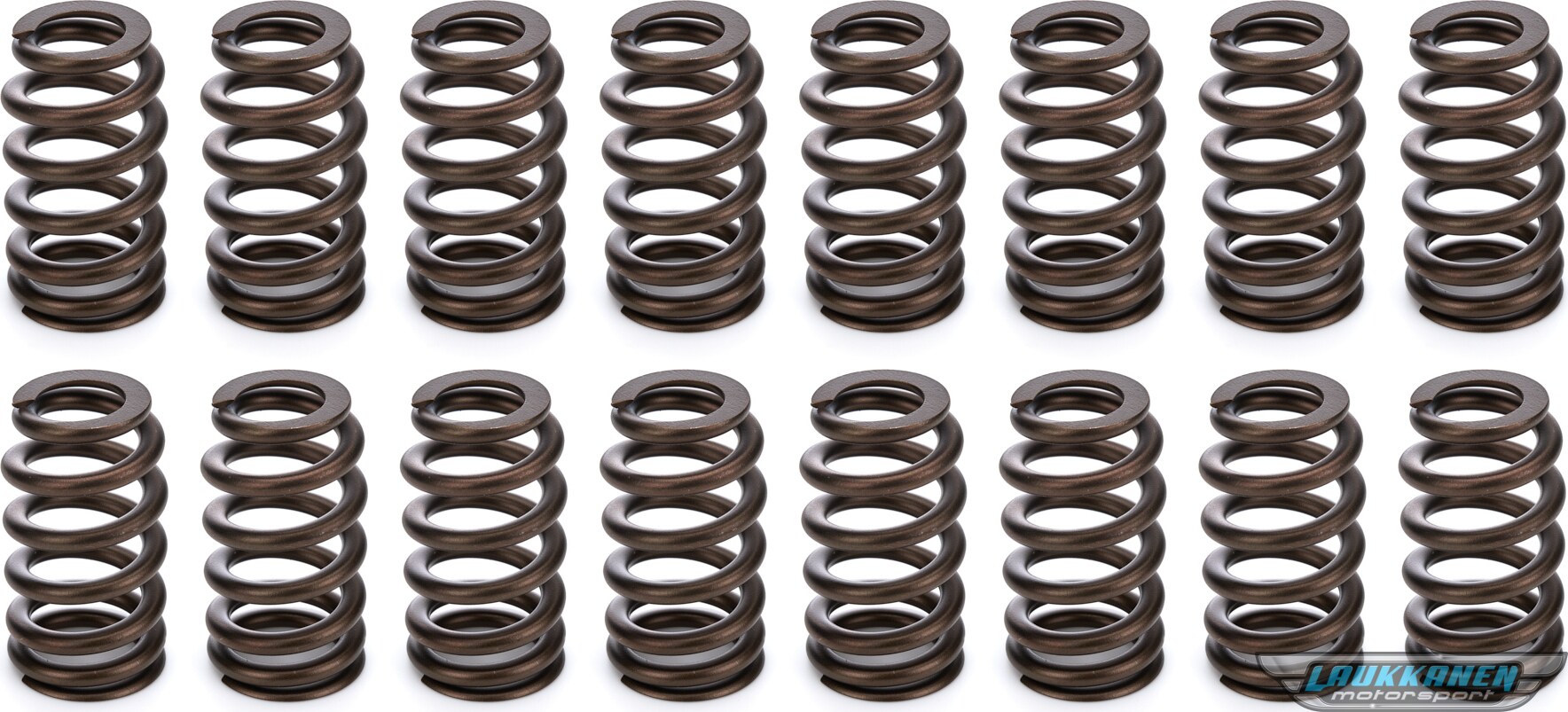

PAC Racing - PAC-1218 - 1.290 Valve Springs - Ovate Beehive (16)

Valve Spring - 1200 Series - Ovate Beehive Spring - 313 lb/in Spring Rate - 1.140 in Coil Bind - 1.055 in / 1.290 in OD - GM LS-Series - Set of 16

Lisätiedot
Outer Diameter (Bottom): 1.290 in
Inner Diameter (Bottom): 1.055 in
Outer Diameter (Top): 0.885 in
Inner Diameter (Top): 0.650 in
Installed Height (Valve Closed): 1.800 in
Seat Pressure @ 1.800 in: 130 lbs
Open Pressure @ 1.200 in: 318 lbs
Spring Rate: 313 lb/in
Coil Bind Height: 1.115 in
Max Valve Lift: 0.600 in

Recommended components:
Retainers (PAC 300 Series): R310, R311, R362, R363
Retainers (PAC 500 Series): R510, R511
Spring Seats: S111

Käyttöhuomiot:
Fits stock LS1 retainers and seats. Drop-in design with increased load.


racingsprings.com

Valmistajan osanumero: PAC-1218

Pac Racing Catalog -24
Pac Racing Catalog -15

Tekniset tiedot tulee aina varmistaa valmistajalta ja moottorinrakentajalta ennen lopullista kokoonpanoa.
